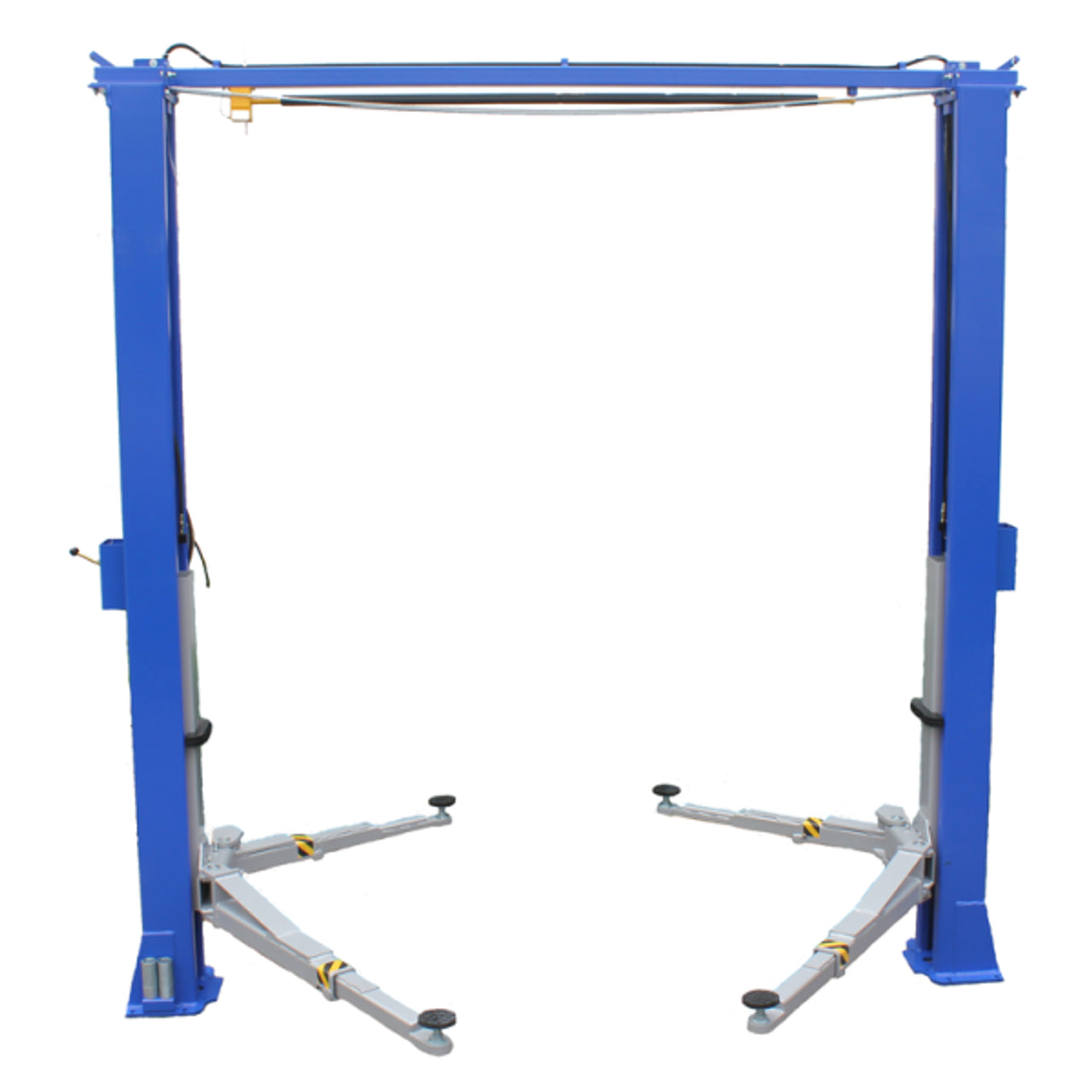

TWO POST CLEAR FLOOR DIRECT DRIVE BI-SYMMETRIC-3 STAGE-SINGLE POINT LIFT

Features

• 11,000 lb lifting capacity
• Direct Drive
• 3 Stage Front Arms
• Asymmetric/Symmetric Arm Configuration
• Symmetric Columns
• Single Point Lock Release
• Low Profile Arms
• Rubber Door Guards
• Spin up pads with stackable truck adapters included 2″ and 4″
• Capacity 11,000lbs
• Overall Height 144"
• Width Overall w/Power Unit 145-1/2"
• Max Lift Height 71"
• Min Pad Height 4"
• Width Between Columns 116"
• Drive thru Clearance 104"
• Lifting speed 50 sec
• Asymmetric / Symmetric (Both)
• Clear Floor / Floor Plate (Clear floor)
• Power 220V-20amp-1PH
• Ship Weight 1,705lbs
