SUPER WIDE CAR LIFT

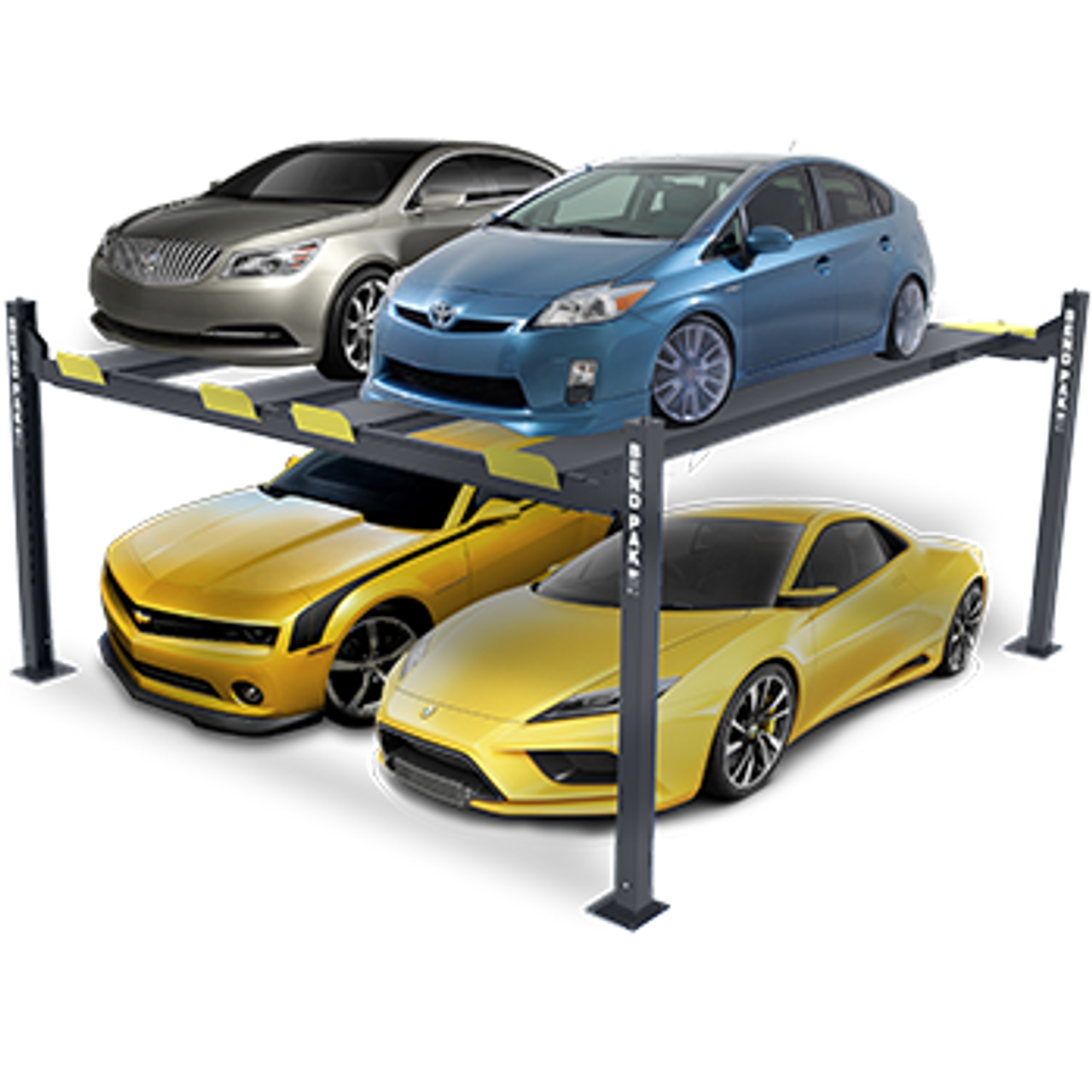

BENDPAK HD-9SW 9,000-lb. Capacity Super Wide Car Lift

FEATURES

• Standard rise
• Shorter runway for smaller spaces
• Runways accommodate wide or narrow vehicles
• Runways include rail-kit for optional accessories
• Electric / hydraulic power system
• Single hydraulic cylinder mounted underneath runway
• Fully enclosed lifting cables, safety locks and sheaves
• Internal anti-sway slider blocks in each column
• Oversized self-lubricating cable rollers
• Oversized sheave diameter reduces cable fatigue
• High-speed lifting
• Features heavy-duty 3/8" aircraft cable
• Rugged 1-1/4" roller axles
• Multi-position safety locks in each column
• Adjustable lock ladders
• Runways feature non-skid surface
• Push-button pneumatic safety release
• Independent backup slack-cable safety latches
• Inside runways adjust for different tread widths
• Customizable power unit location
• Removable approach ramps for additional drive-under clearance
• Optional drive-thru ramps available
• Optional drip trays available
• Optional solid deck available to increase storage capacity
• Optional 4,500-lb. air / hydraulic rolling jacks available

SPECS

• Lifting capacity*: 9,000 lbs. / 4,082 kg
  • *Max capacity / front axle: 4,500 lbs. / 2,041 kg
  • *Max capacity / rear axle: 4,500 lbs. / 2,041 kg
• Overall width: 202" / 5,131 mm
• Outside length: 174" / 4,420 mm
• Overall length: 200" / 5,080 mm
• Height of columns: 88" / 2,235 mm
• Runway min height: 7" / 178 mm
• Max rise: 70" / 1,778 mm
• Max lifting height: 77" / 1,956 mm
• Width between posts: 192" / 4,877 mm
• Runway width: 19" / 483 mm
• Width between runways: 37" – 42" / 940 mm – 1,067 mm
• Length of runways: 164" / 4,166 mm
• Min wheelbase @ rated capacity: 115" / 2,921 mm
• Min wheelbase @ 75% capacity: 100" / 2,540 mm
• Min wheelbase @ 50% capacity: 85" / 2,159 mm
• Min wheelbase @ 25% capacity: 70" / 1,778 mm
• Outside column spacing: 15-1/2" / 394 mm
• Locking positions: 12
• Lock spacing: every 4" / 102 mm
• Lifting time: 55 sec
• Motor: 220 VAC / 60 Hz / 1 Ph
• Shipping weight: 2,892 lbs. / 1,315 kg
• Shipping dimensions: 204" x 24" x 42" / 5,182 mm x 610 mm x 1,067 mm
