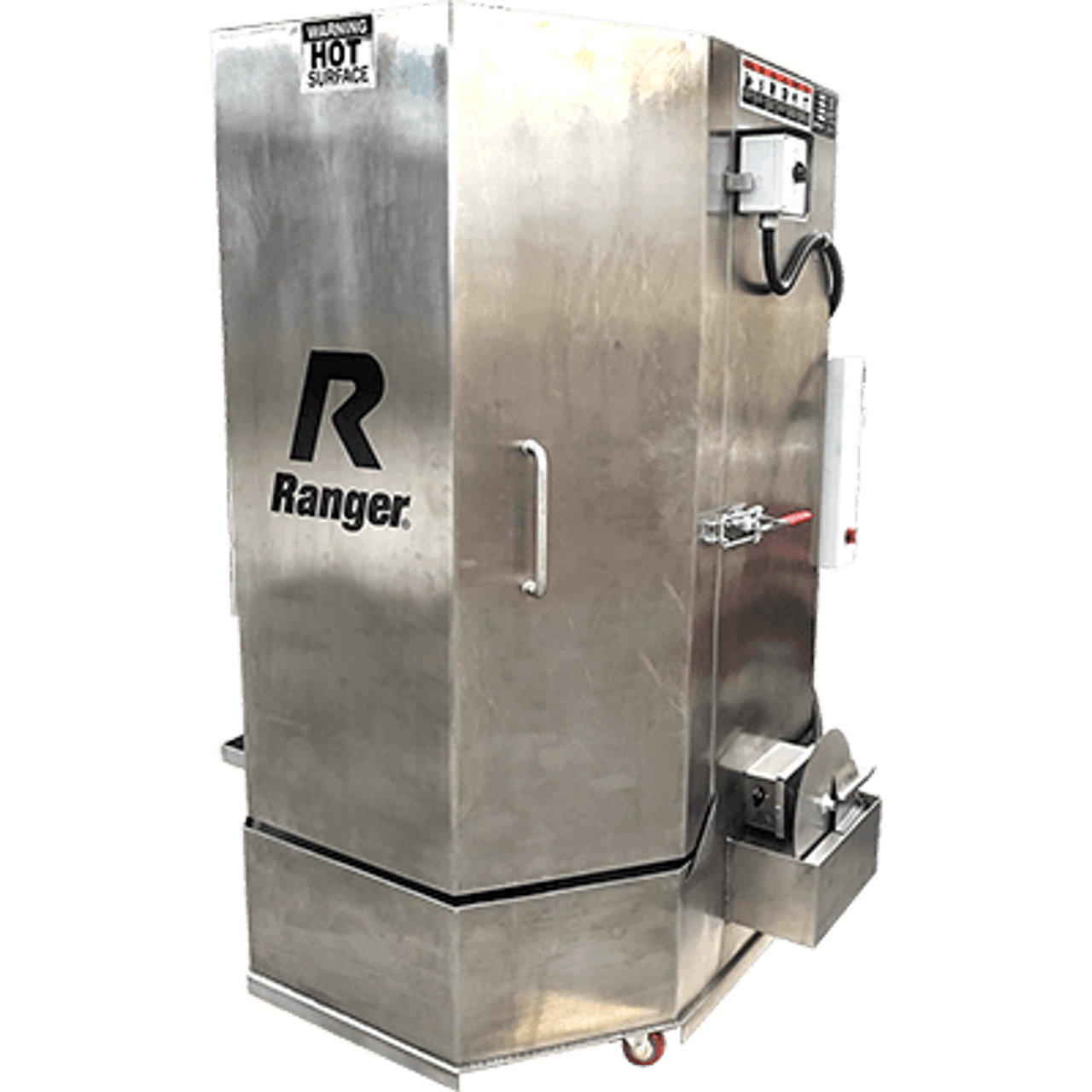

RANGER RS-500DS STAINLESS STEEL SPRAY WASH CABINET

RANGER RS-500DS Stainless Steel Spray Wash Cabinet / Dual-Heaters / Low-Water Shutoff

FEATURES

• Heavy-duty stainless steel construction
• Safe aqueous operation: No harsh chemicals
• 50 gallon tank
• Dual water heaters for quick startup
• Heated cabinet w/ adjustable thermostat
• High-power spray jets clean parts fast
• Automatic low water shutoff
• Removable tank screen
• Stainless oil skimmer
• Removable parts tree
• Powder coat finish
• Stainless steel nozzles
• Full opening octagonal door
• Large drain pipe
• Heavy-duty casters
• Friction-drive turntable system
• Neoprene-sealed wash cabinet
• Contamination-proof interior welds
• Gasket-free door
• Small parts basket
• Stainless steel handles
• Free bucket and soap included
• Overall height: 66" (1,676 mm)
• Inside height: 43" (1,092 mm)
• Inside width: 32" (813 mm)
• Turntable diameter: 30" (762 mm)
• Tank capacity: 50 gallons
• Load capacity: 500 lbs. (227 kg)
• Cycle timer: 0 - 60 min
• Recommended floor space: 44" x 43" (1,118 mm x 1,092 mm)
• Brass nozzles: 18
• Steel construction: 12 Gauge / .109 thickness
• Pump output: 75 psi @ 70 gpm
• Motor:  1 HP / 208-230V / 60 Hz / 1 Ph or 3 HP / 380-415V / 50 Hz / 3 Ph
• Electric heater: 6 kW
• Water temperature: 160° - 180° F (71° - 82° C)
• Shipping weight: 750 lbs. (336 kg)
• Shipping dimensions: 36" x 44" x 68" (914 mm x 1,118 mm x 1,727 mm)
