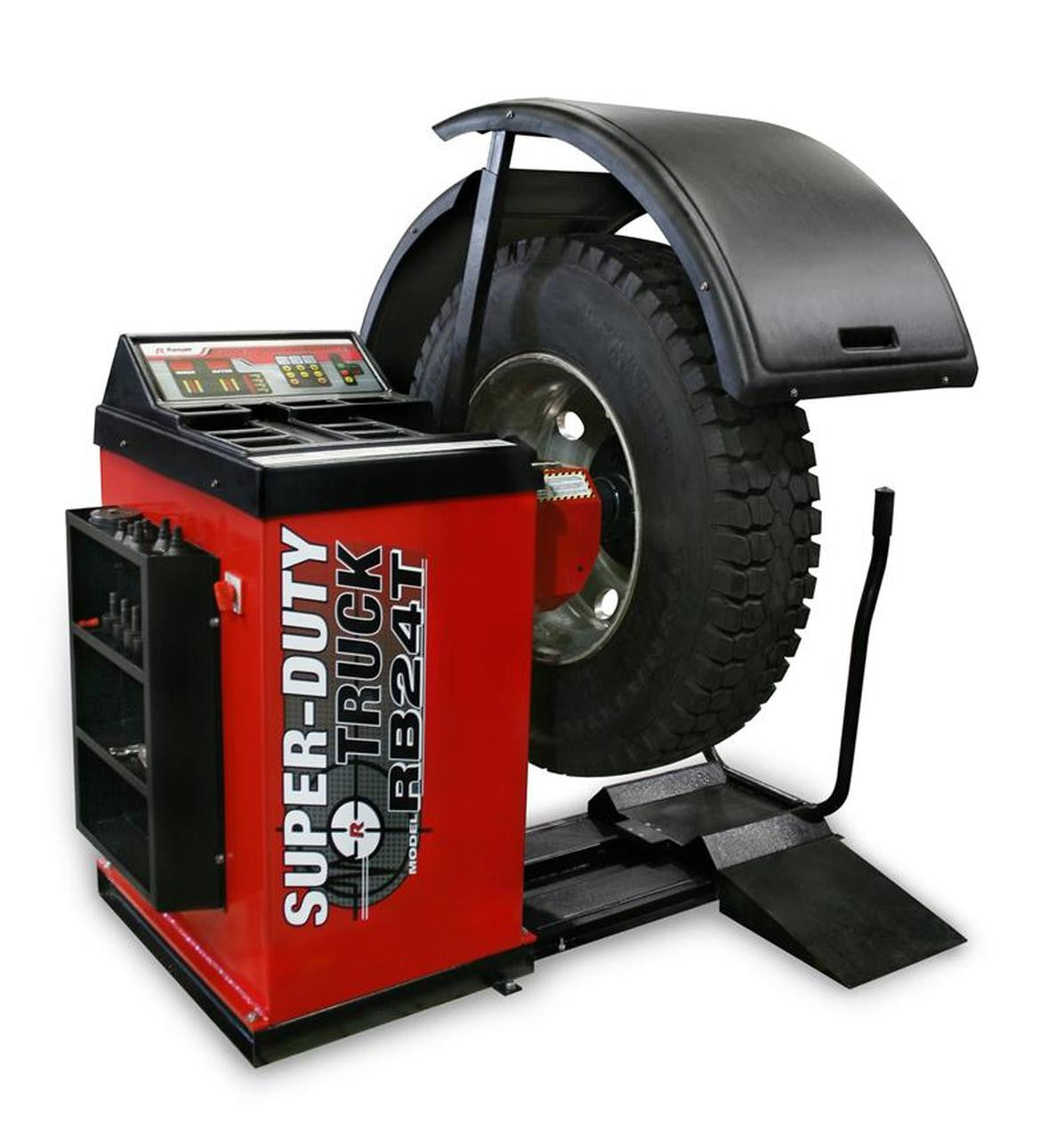

RANGER RB24T SUPER-DUTY TRUCK WHEEL BALANCER WITH DRIVE-CHECK TECHNOLOGY

RANGER RB24T Super‐Duty Truck Wheel Balancer with Drive‐Check™ Technology

FEATURES

• Power supply voltage: 208-240V 50/60HZ 1Ph.
• Drive motor: 1.5 HP / 380V 50/60HZ 3Ph.
• Integrated power phase converter: Standard
• Working temperature: -5C / 27F - 50C / 82F
• Drive system: Ribbed nylon fiber-reinforced drive belt
• Cycle time: 7 - 10 seconds (avg.) depending on wheel
• Balancing modes: 1 dynamic / 1 static / 3 alloy
• Top positioning weight locator: standard
• Inside & outside measuring: standard
• Millimeter / inches selection: standard
• Ounce / gram selection: standard
• Self-calibration function: standard
• Auto start when hood is lowered: standard
• Wheel spin braking: electronic pulse / pneumatic brake
• Wheel holding device: standard / pneumatic brake
• Quick chuck kit: standard
• Adjustable flange plate and stud kit: standard
• Multi-piece mounting cone kit: standard
• Shaft size: 40 mm.
• Centering cones included: 5 standard / 1 dual tapered cone
• Wheel calipers: standard
• Maximum tire diameter: 50" / 1,270 mm
• Max tire weight: 400 pounds (181 kg)
• Max. wheel diameter: 30" / 762 mm
• Wheel width capacity: 2" - 20" / 51 mm - 508 mm
• Balancing increments: 0.25 or 0.01 oz
• Balancing speed: 220 rpm
• Accuracy / standard (cars & light truck): +/- 1 gram / .03 oz
• Accuracy / truck (truck, bus & OTR): +/- 10 gram / .35 oz
• Resolution (round off mode): +/- 7 gram / .25 oz
• Dimensions: D-60" / W-60" / H-66"
• Shipping weight: 825 lbs. / 374 kg
• An ergonomic control board and easy‐to‐read LED display has vibrant visual cues and keypad to improve efficiency and proper balancing techniques for faster floor‐to‐floor times.
• Highly precise 64‐bit architecture and single‐chip technology.
• Perfectly balanced vibration‐ free counter weighted flywheel belt drive offers performance and dependability under all load conditions. Serpentine belt features a polyester‐aramid fiber composite core to resist degradation of functional performance under extreme operating conditions.
• Dynamic, static and performance alloy settings are easily configured with the simple push of a button for a variety of wheel styles and designs.
• Auto‐stop function features electro‐magnetic pulse combined with pneumatic braking.
• Gram/ounce selection and millimeter/inch selection
• Dual function weight position indicators provides either top‐dead‐center or bottom‐dead‐center weight positions.
• Three‐phase 380‐volt drive‐motor for efficient starting under heavy loads. Built‐in digital solid‐state phase converter provides the required 380‐volt power regardless of single or three phase power supply.
• Manual or automatic start when hood is lowered.
• Self‐calibration function.
• High‐volume top weight tray and side shelf storage gives you room to inventory a wide variety of wheel weights and tools. Side cone storage pegs keeps accessories readily available.
• Low RPM balancing speed and rapid 7‐10 second cycle time.
• An integrated wheel lift helps technicians mount wheels effortlessly on the balancer.
• Fully equipped multi‐piece wheel mounting adapter kit – everything is included.
• Self‐centering quick‐chuck adapter dramatically reduces set‐up times.
• Precision‐machined, hardened‐steel 40‐mm shaft.
• Manual or automatic pneumatic brake hold wheels at precisely 12‐o’clock for proper weight placement.
• Open‐sided hood design allows for a broader coverage of tire shapes and sizes.
