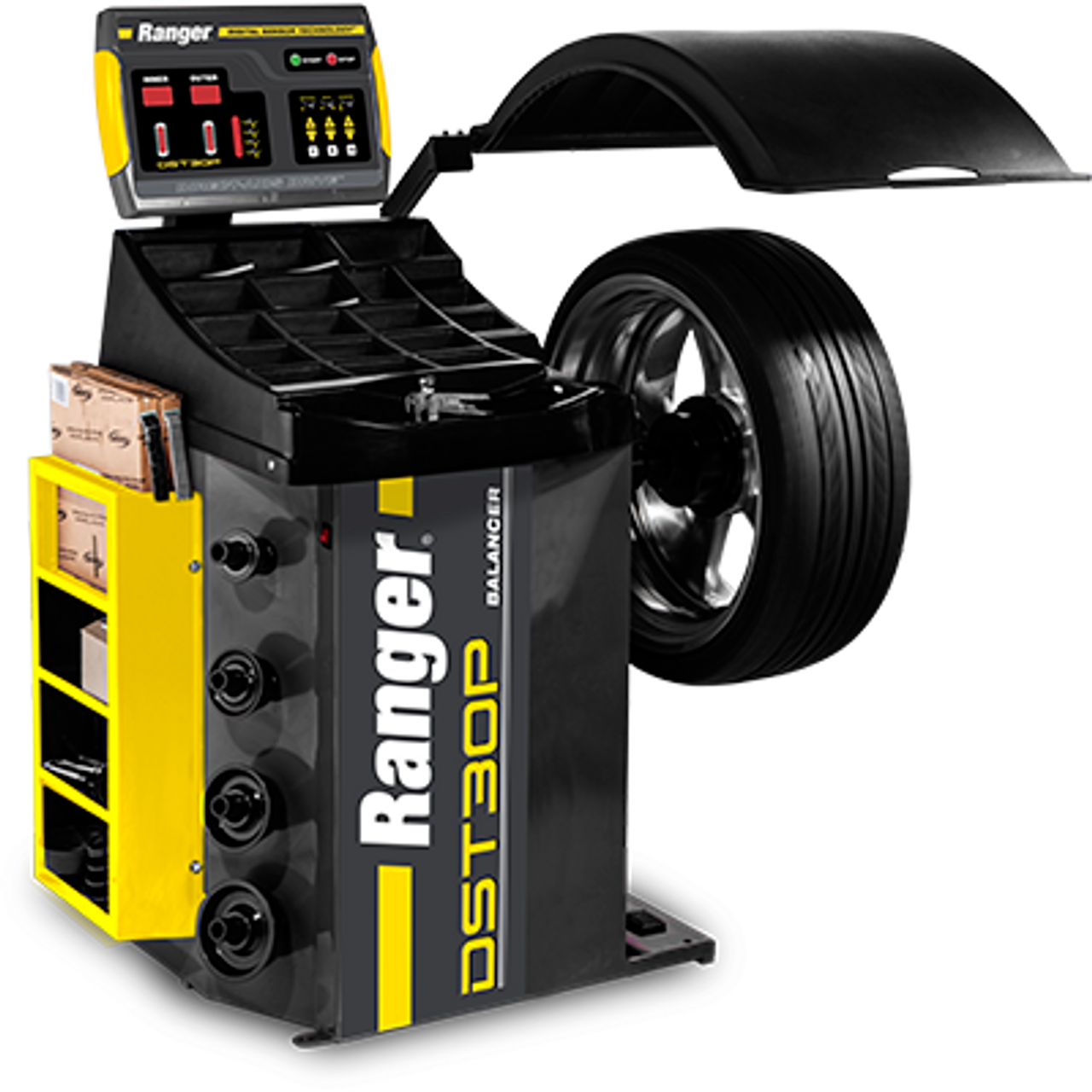

RANGER DST 30P WHEEL BALANCER

RANGER DST30P WHEEL BALANCER

FEATURES

• Dynamic, Static, and Performance Alloy settings
• A multi-user save function holds presets to increase productivity
• An ergonomic control board and easy-to-read LED display has vibrant visual cues and keypad to improve efficiency and proper balancing techniques for faster floor-to-floor times
• A simultaneous retrieval of static, dynamic and ALU1/ALU2 data, identifies weight placement configurations for a variety of wheel styles and designs with the simple push of a button
• Automatic rolling wheel parameter setting feature saves valuable time and minimizes errors
• Low RPM balancing speed and rapid six-second cycle time
• Automatic braking
• Gram/ounce selection and millimeter/inch selection
• Automatic round-off with top-dead-center weight position indicator
• Manual or automatic start when hood is lowered
• Self-calibration function
• High-volume top weight tray and side shelf storage gives you room to inventory a wide variety of wheel weights and tools
• Newly designed side shelf features an open-top design that accommodates Ranger Quick-Peel™ adhesive tape weight convenient bulk rolls
• Precision-machined, hardened-steel 36 mm shaft
• Quick-release hub nut for dramatically reduced set-up times
• Side-position brake hold wheels at precisely 12-o’clock for proper weight placement
• Side cone storage pegs keeps accessories readily available
• New “open-side” hood design allows for a broader coverage of tire shapes and sizes

• Motor: 110 or 220 VAC, 50/60 HZ, 1 Ph.
• Noise: 50 dB
• Working Temperature: -5 C / 27 F to 50 C / 82 F
• Drive System: Belt Drive
• Cycle Time: 6 to 9 seconds (avg.)
• Balancing Modes: Dynamic / Static / Alloy
• Top Positioning Weight Locator: Standard
• Inside and Outside Measuring: Standard
• Millimeter / Inches Selection: Standard
• Ounce / Gram Selection: Standard
• Wheel Offset Distance Setting: Manual
• Self Calibration Function: Standard
• Auto Start When Hood is Lowered: Standard
• Wheel Spin Braking: Automatic / Electronic
• Wheel Holding Manual Brake Pedal: Standard

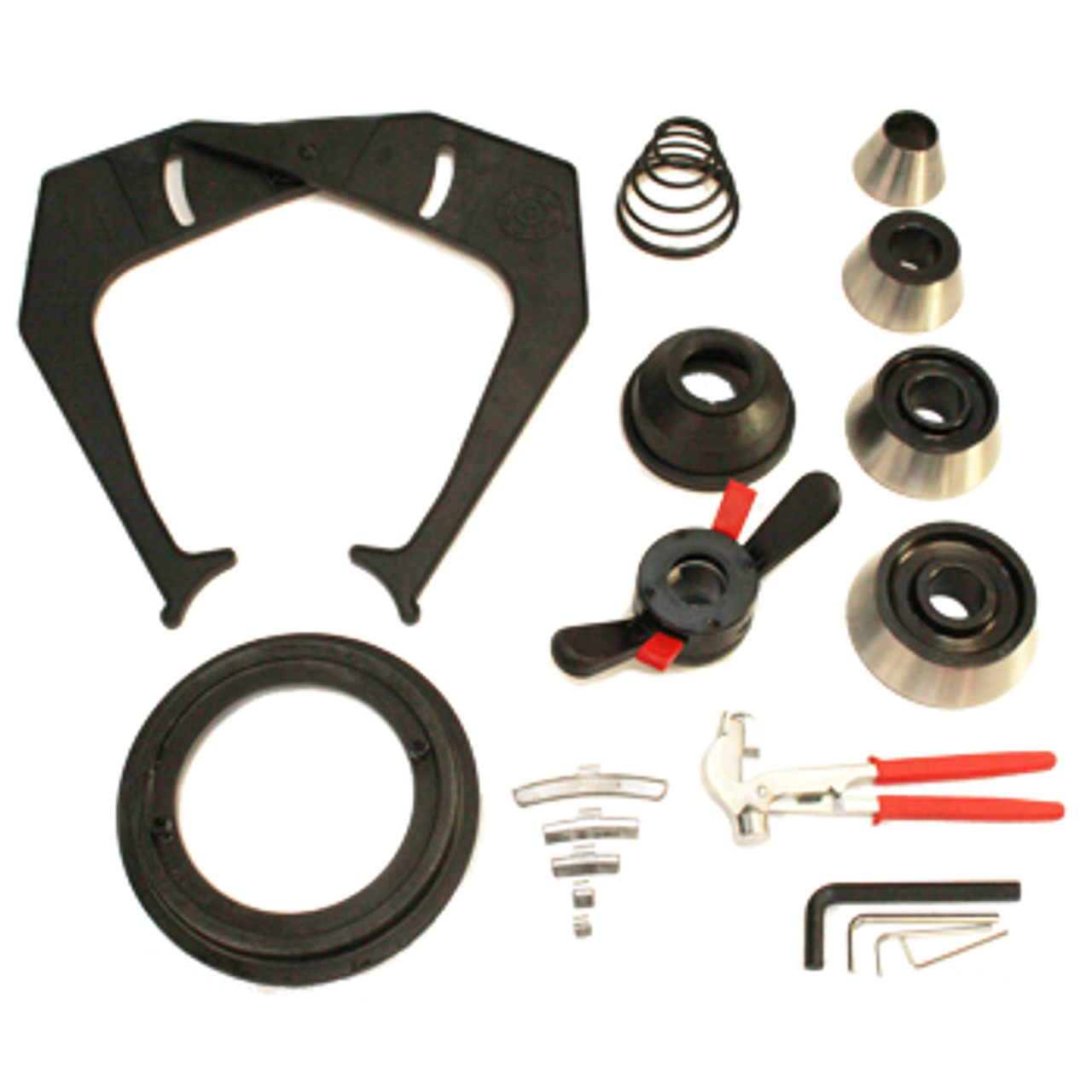

• Centering Cones Included: 3 Standard / 1 Truck
• Truck Cone / Spacer Ring Adapter Set: Included Standard
• Wheel Calipers: Standard
• Rear Cone Mount Spring: Standard
• No-Mar Rear Cone Mount Pressure Cup: Standard
• Quick-Release & Mount Hub Nut: Standard
• Max. Rim Diameter: 50" / 1,270 mm
• Max. Tire Weight: 150 lbs. / 68 kg
• Max. Wheel Diameter: 8" - 30" / 254 mm - 672 mm
• Wheel Width Capacity: 1.2" - 20" / 30 mm - 508 mm
• Balancing Increments: 0.25 oz / 7 gram
• Balancing Speed: 180 RPM (avg.)
• Accuracy: +/- 1 gram / .035 oz
• Resolution (Round Off Mode): 0.01 ounce, 1.4°
• Shipping Weight: 398 lbs. / 181 kg
• Height w/ Hood Up: 66" / 1,676 mm
• Height w/ Hood Down: 52" / 1,321 mm
• Width: 51" / 1,295 mm
• Depth w/ Hood Down: 40" / 1,016 mm
• Depth w/ Hood Up: 38" / 965 mm
• Depth Required: 46" / 1,168 mm
