RANGER DST-2420 WHEEL BALANCER

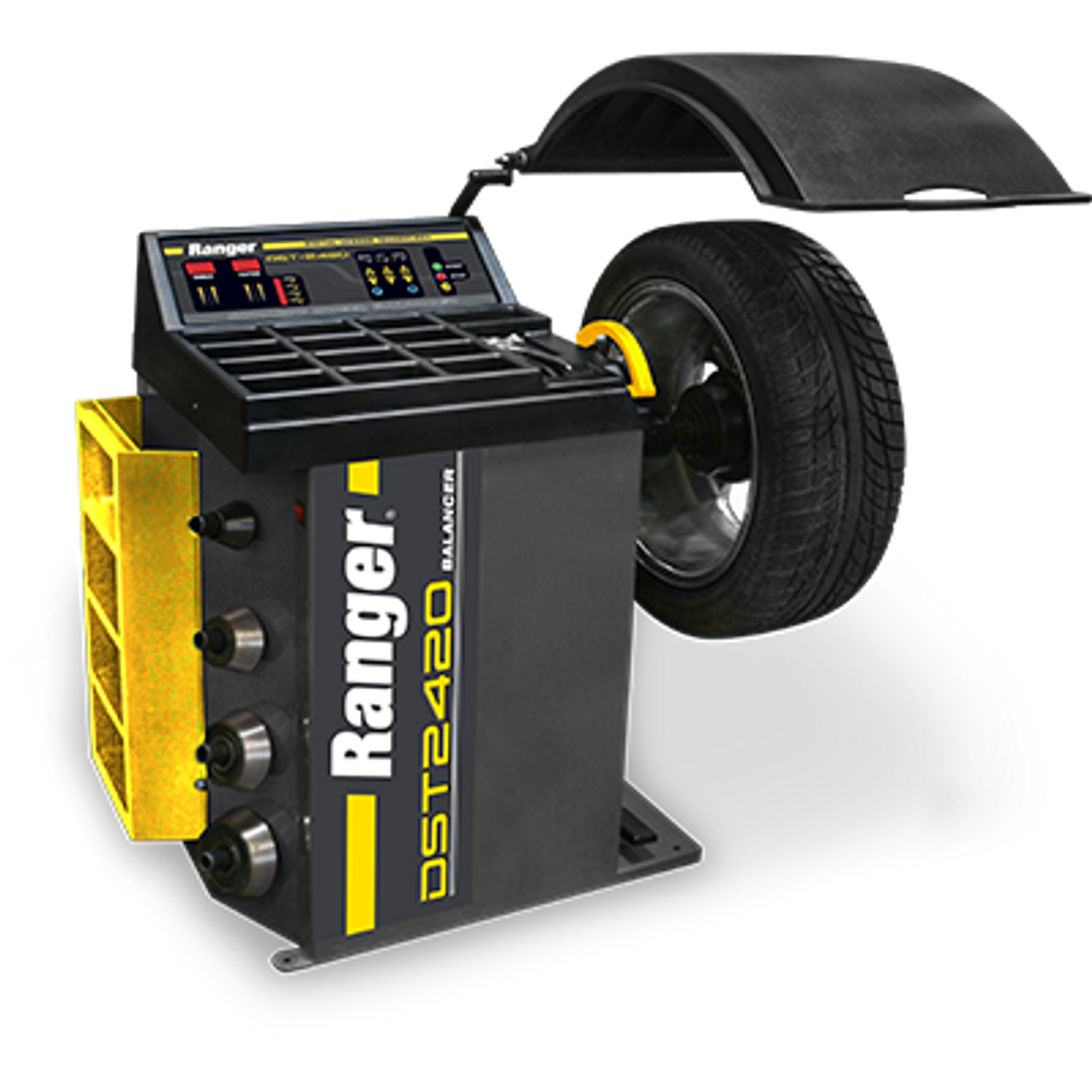

RANGER DST-2420 Wheel Balancer

FEATURES

Features

• Style Auto & Light Truck
• Data Entry Manual
• Motor 1.5 HP, 110V / 220V, 50 / 60 Hz, 1Ph
• Cycle Time 6 - 9 Seconds (avg.)
• Balancing Modes Dynamic / Static / 3-Alloy
• Drive System Belt Drive
• Wheel Braking Automatic / Electronic
• Cones Included 3 Standard / 1 Truck
• Tire Diameter 47” (1,194 mm)
• Tire Weight 145 lbs. (65 kg)
• Wheel Diameter Capacity 10” - 30” (254 mm - 672 mm)
• Wheel Width Capacity 2” - 18” (51 mm - 457 mm)
• Balancing Increments 0.25 or 0.01 oz
• Balancing Speed 180 RPM
• Accuracy +/- 1 gram (.035 oz)
• Resolution 0.01 ounce, 1.4°
• Shipping Weight 398 lbs. (181 kg)
• Dynamic, Static, and Performance Alloy settings
• A multi-user save function holds presets to increase productivity
• An ergonomic control board and easy-to-read LED display has vibrant visual cues and keypad to improve efficiency and proper balancing techniques for faster floor-to-floor times
• A simultaneous retrieval of static, dynamic and ALU1\ALU2\ALU3 data, identifies weight placement configurations for a variety of wheel styles and designs with the simple push of a button
• Automatic rolling wheel parameter setting feature saves valuable time and minimizes errors
• Low RPM balancing speed and rapid six-second cycle time
• Automatic braking
• Gram/ounce selection and millimeter/inch selection
• Automatic round-off with top-dead-center weight position indicator
• Tiered weight placement indicators help identify out-of-sight position weight placement such as split-weight or hidden “behind-the-spoke” techniques
• Manual or automatic start when hood is lowered
• Self-calibration function
• High-volume top weight tray and side shelf storage gives you room to inventory a wide variety of wheel weights and tools
• Newly designed side shelf features an open-top design that accommodates Ranger Quick-Peel™ adhesive tape weight convenient bulk rolls
• Precision-machined, hardened-steel 36 mm shaft
• Quick-release hub nut for dramatically reduced set-up times
• Side-position brake hold wheels at precisely 12-o’clock for proper weight placement
• Side cone storage pegs keeps accessories readily available
• New “open-side” hood design allows for a broader coverage of tire shapes and sizes
