NARROW WIDTH CAR LIFT

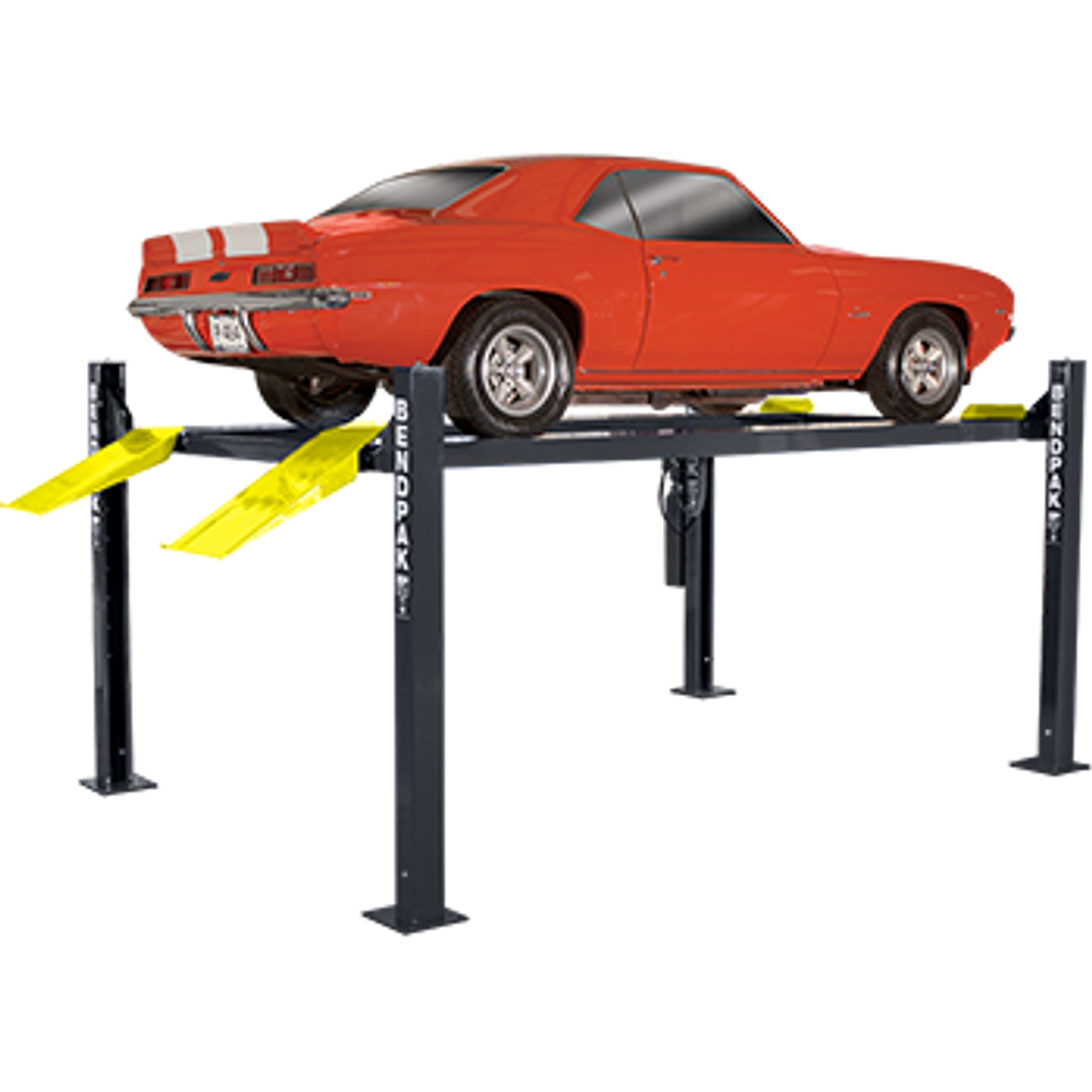

BENDPAK HD-9ST 9,000-lb. Capacity Narrow Width Car Lift

• 9,000-lb. maximum lifting capacity
• Two different ramp lengths to choose from
• Narrow width for space efficiency
• Freestanding design
• Perfect for parking, storage and service
• Runways accommodate narrow and standard vehicles
• Runways include rail-kit for optional accessories
• Electric / hydraulic power system
• Single hydraulic cylinder mounted underneath runway
• Fully enclosed lifting cables, safety locks and sheaves
• Internal anti-sway slider blocks in each column
• Oversized self-lubricating cable rollers
• Features heavy-duty 3/8" aircraft cable
• Rugged 1-1/4" roller axles
• Multi-position safety locks in each column
• Adjustable lock ladders
• Runways feature non-skid surface
• Push-button pneumatic safety release
• Independent backup slack-cable safety latches
• Customizable power unit location
• Removable approach ramps for additional drive-under clearance
• Longer approach ramps for low-ground clearance vehicles
• Optional drive-thru ramps available
• Optional drip trays available
• Optional solid deck available to increase storage capacity
• Optional 4,500-lb. air / hydraulic rolling jacks available (Model RJ-45)
• ETL Approved
• Lifting capacity*: 9,000 lbs. / 4,082 kg
  • *Max capacity / front axle: 4,500 lbs. / 2,041 kg
  • *Max capacity / rear axle: 4,500 lbs. / 2,041 kg
• Overall width: 99-3/4" / 2,534 mm
• Outside length: 174" / 4,420 mm
• Overall length: 200" / 5,080 mm
• Height of columns: 88" / 2,235 mm
• Runway min height: 4-1/2" / 114 mm
• Max rise: 70" / 1,778 mm
• Max lifting height: 74-1/2" / 1,892 mm
• Width between posts: 89-3/4" / 2,280 mm
• Runway width: 19" / 483 mm
• Width between runways: 37-1/2" / 952 mm
• Runway center line: 56-1/2" / 1,435 mm
• Outside edge of runways: 75-1/2" / 1,918 mm
• Length of runways: 164" / 4166 mm
• Min. wheelbase @ rated capacity: 115" / 2,921 mm
• Min. wheelbase @ 75% capacity: 100" / 2,540
• Min. wheelbase @ 50% capacity: 85" / 2,159 mm
• Min. wheelbase @ 25% capacity: 70" / 1,778 mm
• Locking positions: 12
• Lock spacing: every 4" / 102 mm
• Lifting time: 45 sec
• Motor: 220 VAC / 60 Hz / 1 Ph
• Shipping weight: 1,872 lbs. / 851 kg
• Shipping dimensions: 180" x 22" x 40" / 4,572 mm x 559 mm x 1,016 mm
