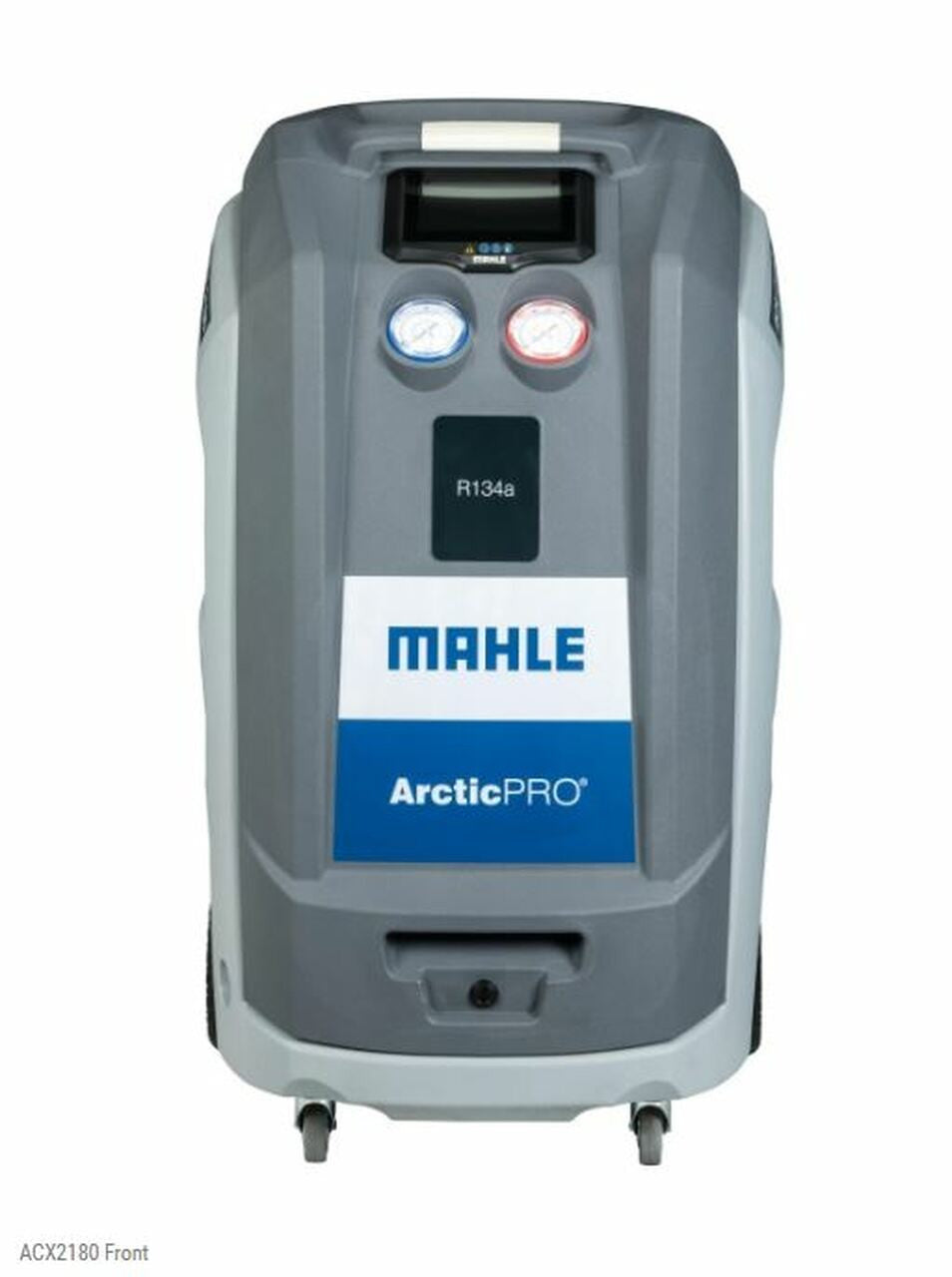

MAHLE ACX-2180H HYBRID A/C RECOVERY MACHINE R134A

Mahle ACX-2180H Hybrid A/C Recovery Machine R134a

FEATURES

Artic Pro 4608044800 MSSACX2180H R134a Refrigerant Handling System

• State-of-the-Art. Ergonomic design, 7" capacitive touch LCD display, and intuitive user interface sets a new industry standard.
• Extra Transducers. Contains three transducers, providing reduced process times over single sensor units.
• Certified. For high voltage compressor service.
• Status Indicator. LED light indicates status visible from anywhere in the workshop.
• Smart. iOS and Android capable phone app allowing remote service session mirroring and advanced functions.
• Best In Class Serviceability. New ergonomic hinged service door simplifies unit service.
• Automatic Updates. Permanent wireless software updates, ensuring you always have the latest features.
• Remote Support for Technicians. Allows MAHLE to connect to a unit over WiFi for troubleshooting and advanced support.
• Data Management & Reporting Metrics. Ability to log and monitor services allowing analytics for proactive service reminders, refrigerant use optimization, warranty reporting and more.
• Customer Service. Every unit is built to be easily repaired by the owner and we proudly offer nationwide service centers and lifetime phone support coverage.
• Network Printing. Retains valuable service records, network printing capability to print services provided for customer.

OPTIONAL FEATURES

• Thermal Printer. Allows printing of service reports.
• Refrigerant Identifier. Prevents contamination of machine internals.

Specifications:

• Certifications SAE J2788, SAE J2099, UL 1963
• Charge Performance +/- 0.5 oz. at 70° to 75° F (+/- 15g at 21° to 24° C)
• Recovery Performance 95% at 70° to 75°F (21° to 24°C) within 30 minutes
• Operation Fully Automatic
• Charging Cylinder 30 lb. (13.6 kg) DOT
• Compressor 3/8 HP-0.279kW
• Dimensions (H x W x D) 47 in x 29 in x 29 in (119 cm x 74 cm x 74 cm)
• Weight 215 lb. (98 kg)
• Display 215 lb. (98 kg)
• Filter Drier Capacity 150 LB (75 kg)
• Hoses 9 ft. (2.75 m)
• Hybrid Function Certified (ACX2180H only)
• Languages English, French, Spanish
• Operating Ranges 50° to 122° F (10° to 50° C)
• Power Source 120 VAC - 60 HZ - 12 AMP
• Printer Optional
• Vacuum Pump 2 CFM dual stage
• Warranty 1 Year Labor, 2 Years Parts
