LOW-RISE LIFT

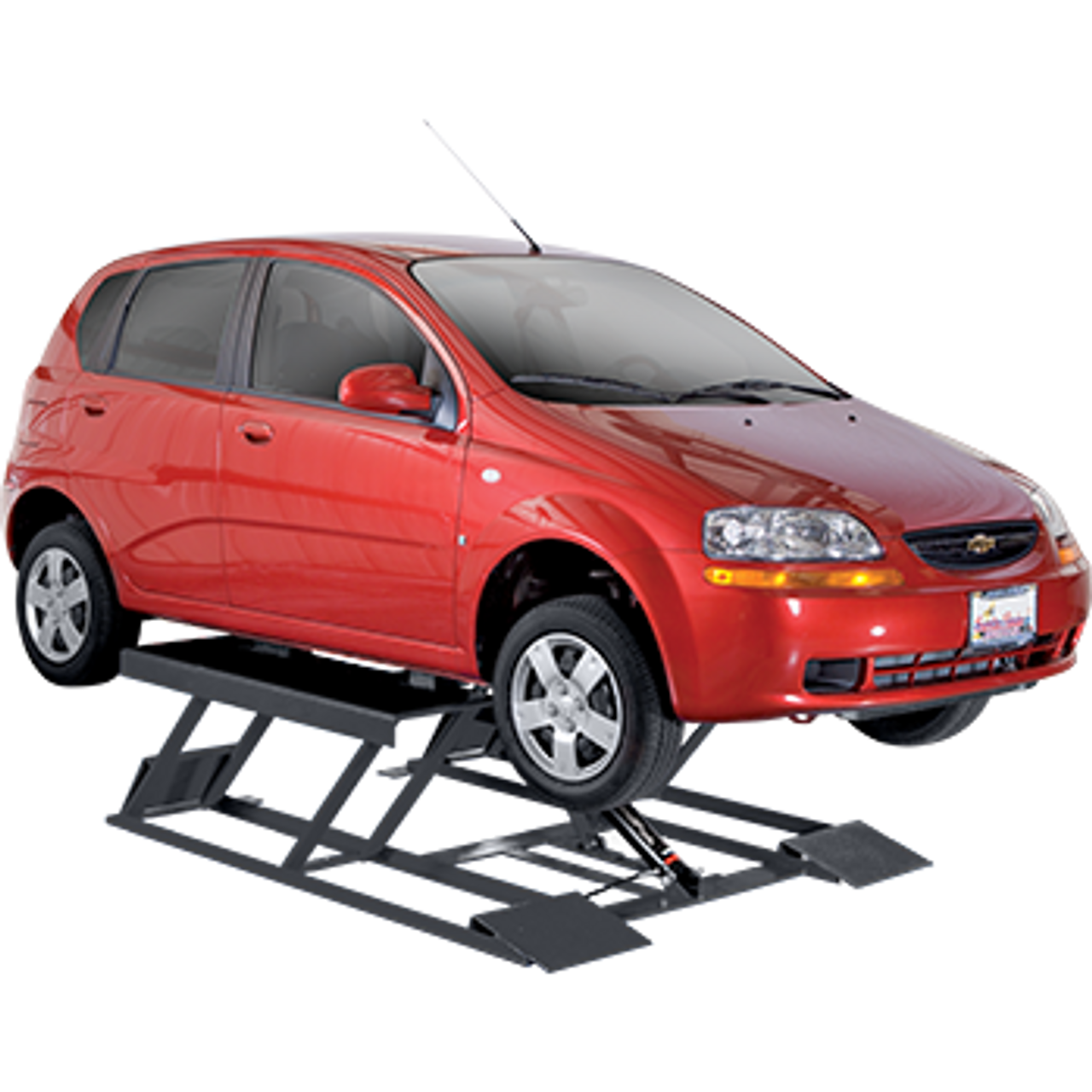

BENDPAK LR-60 6,000-lb. Capacity, Low-Rise Lift

FEATURES

• 6,000-lb. lifting capacity
• Electric / hydraulic power system
• Multi-position safety locks
• Rubber lifting blocks included
• Dropped cross bar for added clearance
• Heavy-duty steel channel frame
• Lifting capacity: 6,000 lbs. / 2,724 kg
• Max lifting capacity front axle: 3,000 lbs. / 1,361 kg
• Max lifting capacity rear axle: 3,000 lbs. / 1,361 kg
• Max lifting height: 26" / 660 mm
• Max lifting height without blocks: 26" / 660 mm
• Max lifting height with 1-1/2" blocks: 27-1/2" / 698-1/2 mm
• Max lifting height with optional 3" blocks: 29" / 737 mm
• Overall pad length: 53" / 1,346 mm
• Overall width: 70-1/2" / 1,791 mm
• Overall length: 82" / 2,083 mm
• Lowered height: 4" / 102 mm
• Lifting time: 35 sec
• Motor: 115/208-230 VAC / 50/60 Hz. 1Ph*
• Lift pad dimension: 18" x 52" / 457 mm x 2,591 mm
• Shipping weight: 814 lbs. / 370 kg
• Shipping dimensions: 82" x 70" x 20" / 2,083 mm x 1,778 mm x 508 mm
