Tuxedo Lifts

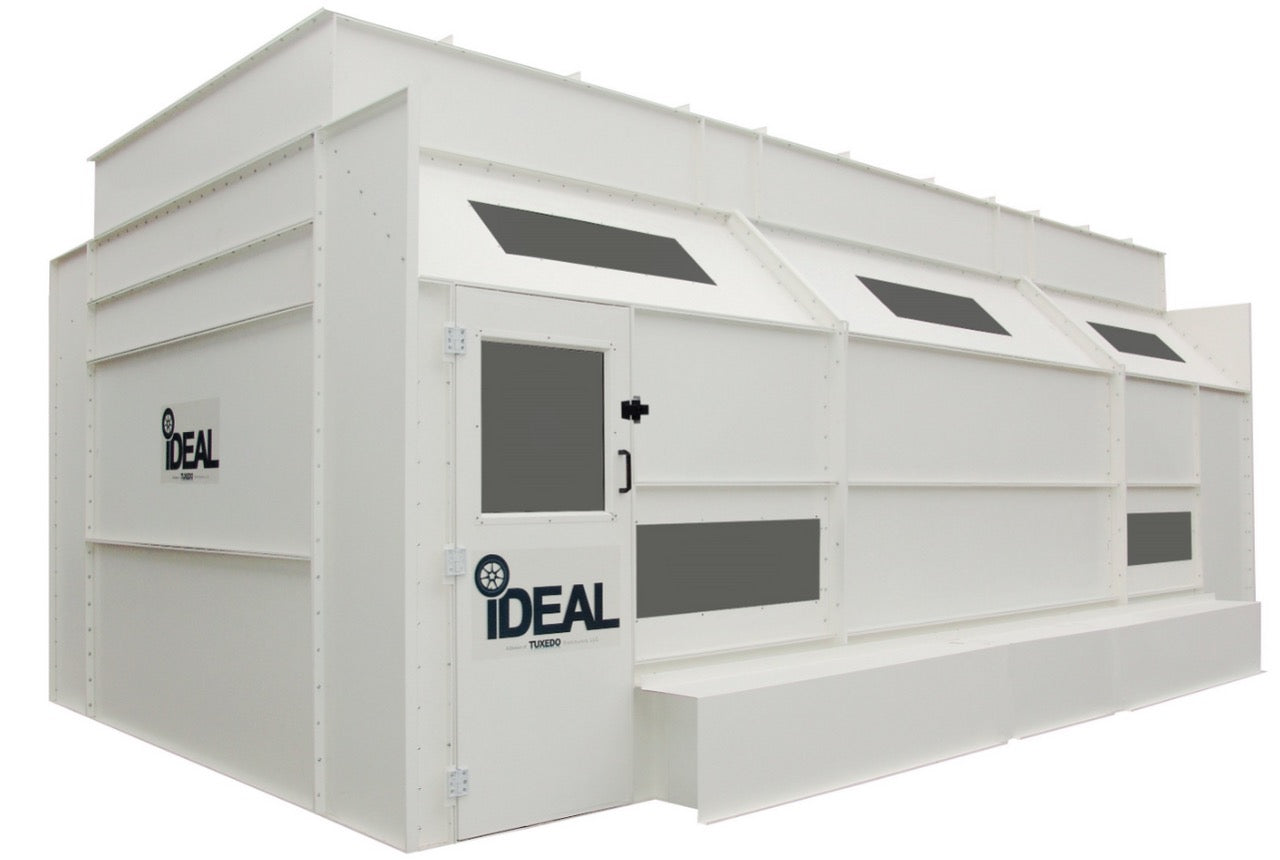

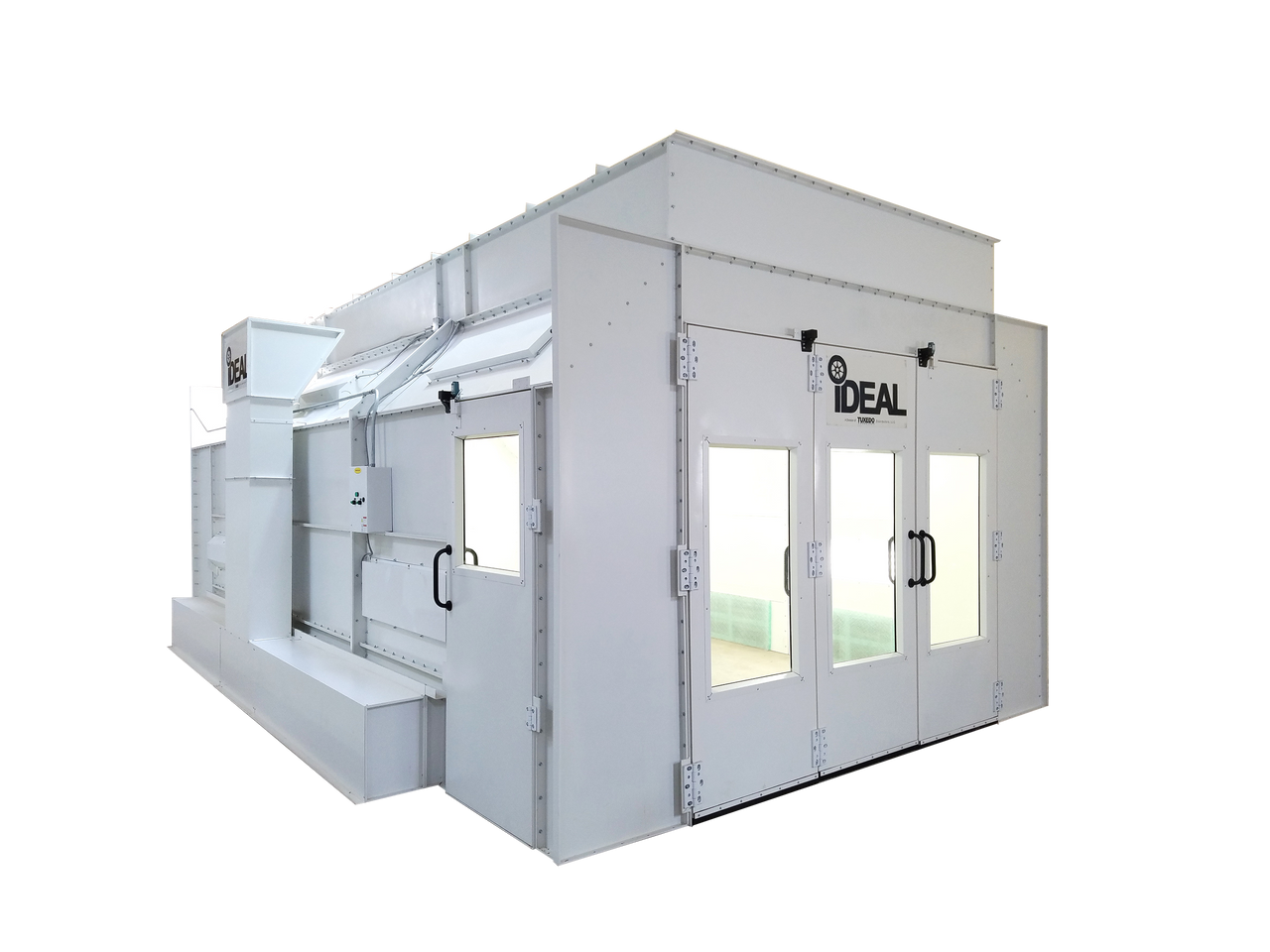

iDEAL - PSB-SDD26B-AK SIDE DOWN DRAFT PAINT SPRAY BOOTH 1PH
iDEAL - PSB-SDD26B-AK SIDE DOWN DRAFT PAINT SPRAY BOOTH 1PH
Regular price
$23,499.00 USD
Regular price
Sale price
$23,499.00 USD
Unit price
/
per
Couldn't load pickup availability
iDEAL - PSB-SDD26B-AK SIDE DOWN DRAFT PAINT SPRAY BOOTH 1PH
FEATURES
- Heavy duty precision punched 18 Gauge panel construction
- Optimal air flow w/ CFM 14,000 @ .5 static pressure
- Commercial grade ‘hip panel’ design for optimal lighting coverage
- Inside Dimensions: 26″ L X 14′ W X 9′ 3″ H
- Convenient 5/16” bolt & nut assembly
- Deluxe Control Panel included
- Bright White Powder Coat panel Finish – (inside & outside)
- Manometer, Solenoid Valve, Hardware & Sealant Included
- (2ea) UL Listed Dayton 24” tube-axial exhaust fan w/ spark resistant fan blades
- NEMA rated 3HP-3 Phase – 230/460VAC-60Hz motors standard
- Premium AFC intake & exhaust filters
- (10ea) LDPI Industrial Lighting T-8 ‘vertical’ light fixtures, 4 lamp
- (40ea) GE T8 Florescent Lamps – 32W, 5000K 4′ length
- Tri-fold entry Doors w/ viewing windows & shutoff switch
- Personnel Door w/ viewing window & shutoff switch
- Meets NFPA 33 standards
- Optional: 1PH electrical, plenum kit, tri-fold drive-thru & Personnel door kits & booth extension kit
| Inside Dimensions | 26’L X 14’W X 9′-3″H |
| Outside Dimensions | 26′-4″L X 17′-8″W X 9-5″H |
| Fan / Motor | (2ea) – 24″ Tube Axial Fans 2HP-3PH-230/460VAC-60HZ Non-Spark, NEMA Rated |
| CFM | 14,000 @ .5 Static Pressure |
| Lighting | 10 Each T-8 / 4 Bulb Light Fixtures |
| Options | Single Phase Electrical Configuration |
| 8′ Exhaust Extension Kit (13″ Diameter) | |
| 8′ Exhaust Extension Kit (13″ Diameter) | |
| Side Personnel Door Kit | |
| 48″ Solid Extension Kit | |
| Drive Thru Door Kit | |
| Gas Fired Booth Heater 3 Phase (Plenum Req.) | |
| Gas Fired Booth Heater 1 Phase (Plenum Req.) | |
| Electric Booth Heater 3 Phase | |
| Electric Booth Heater 1 Phase |
