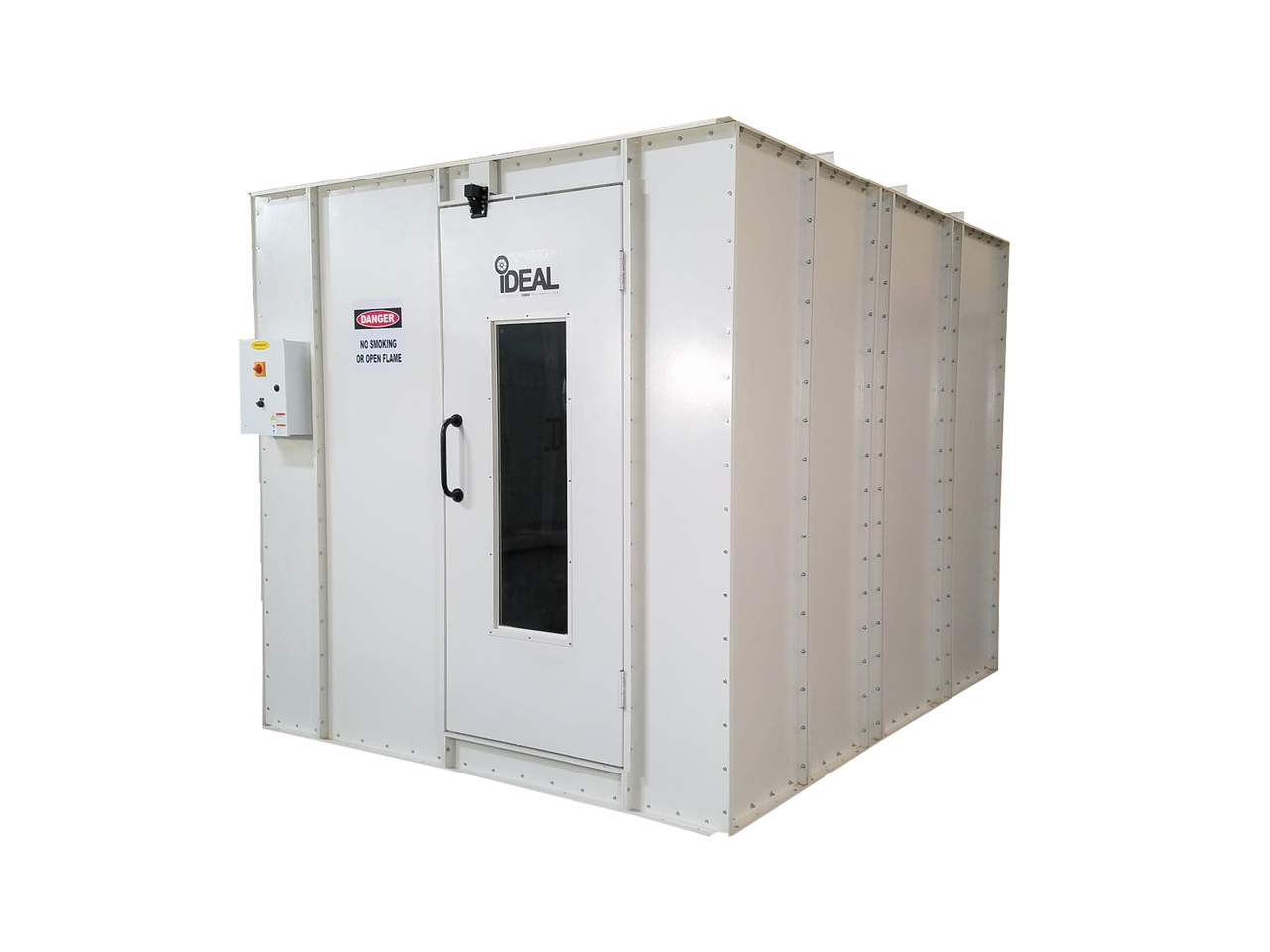

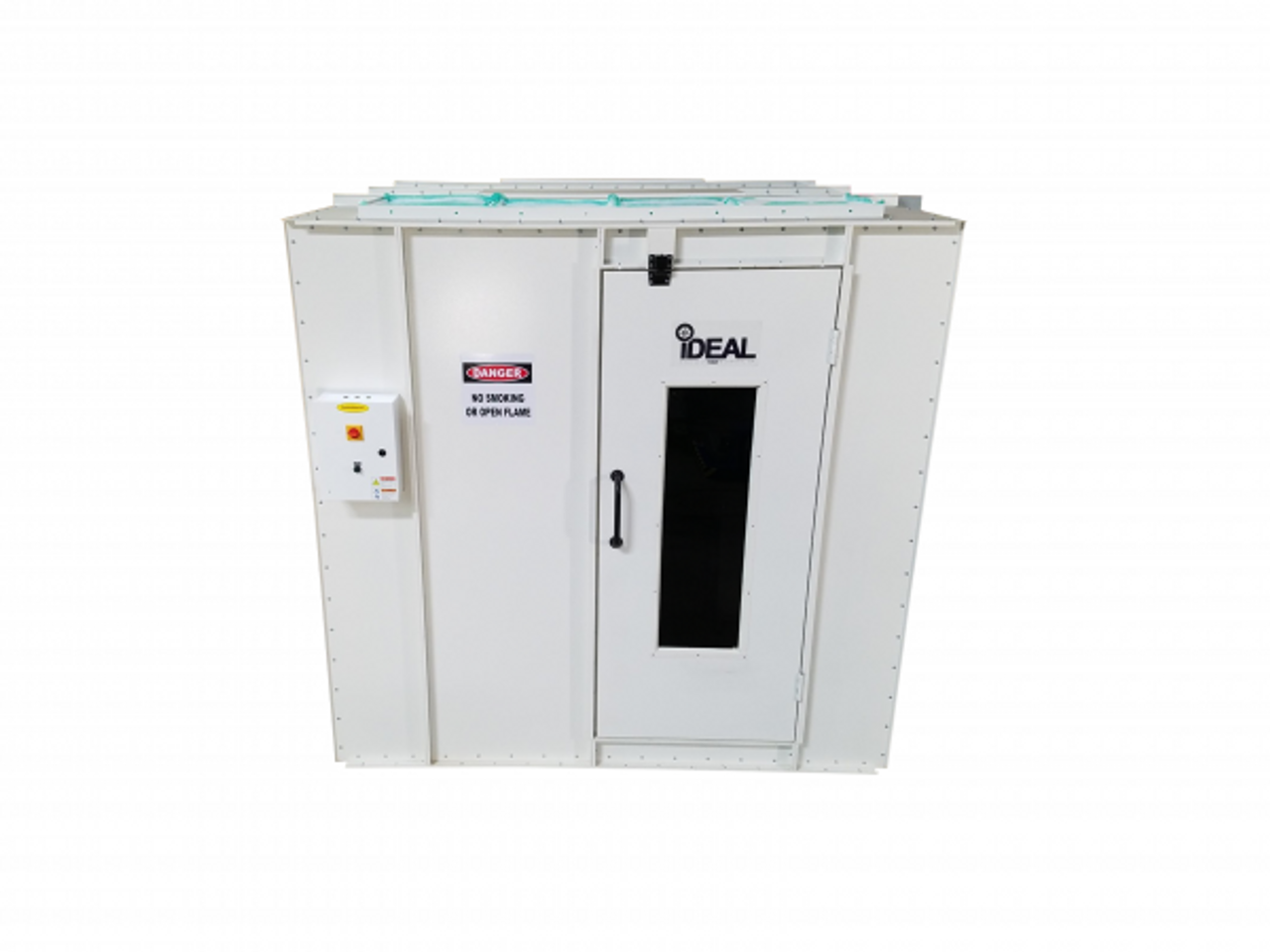

iDEAL - PSB-PMR1088-AK - PAINT MIXING ROOM 1PH 230V
iDEAL - PSB-PMR1088-AK - PAINT MIXING ROOM 1PH 230V
Regular price
$7,599.00 USD
Regular price
Sale price
$7,599.00 USD
Unit price
/
per
Couldn't load pickup availability
iDEAL - PSB-PMR1088-AK - PAINT MIXING ROOM 1PH 230V
FEATURES
- Commercial grade design for optimal air flow & lighting coverage

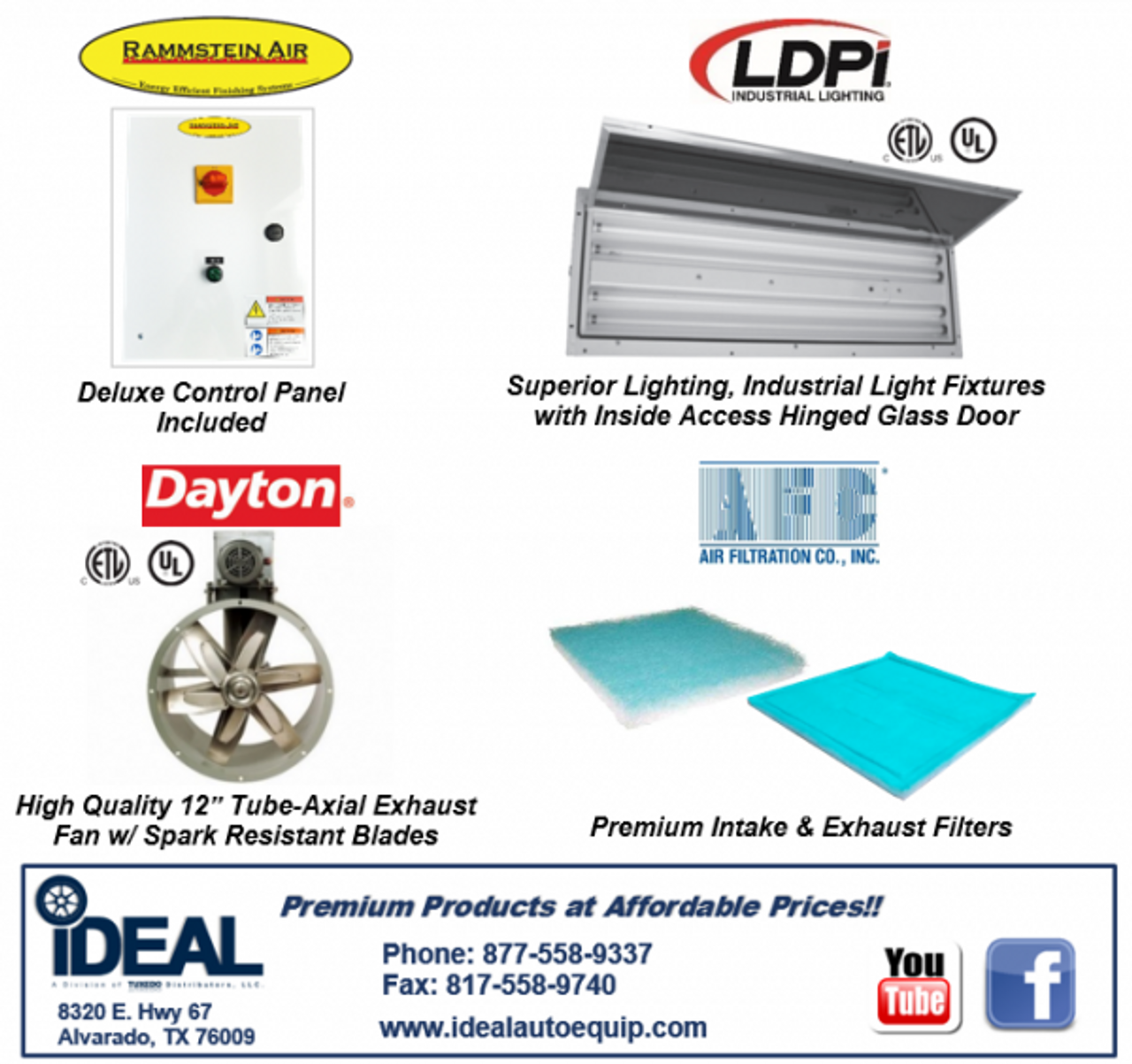

- DELUXE CONTROL PANEL included
- Bright White Powder Coat panel Finish – (inside & outside)
- Optional door placement to side or front of room
- ‘Pre-Hung’ 36”W PERSONNEL DOOR W/ VIEWING WINDOW
- Heavy duty precision punched 18 Gauge panel construction
- Convenient 5/16” bolt & serrated lock nut ASSEMBLY
- UL Listed Dayton 12” tube-axial exhaust fan w/ spark resistant fan blades
- NEMA rated 1/2HP-3 Phase – 230/460VAC-60Hz motor standard
- Premium AFC intake & exhaust filters
- LDPI Industrial Light Fixtures w/ Inside Access Hinged Glass Door
- (2ea) LDPI Industrial (Cls1 / Div 2) Light fixtures – UL & ETL (GROUPS A, B, C & D.)
- True ‘daylight color’ w/ GE t8 48” florescent lamps 32W – 2900 lumens, 5000K
- Optimal air flow w/ CFM 1,429 @ .5 static pressure
- Inside Dimensions: 10″ L X 8′ W X 8″ H
- All assembly HARDWARE, MANOMETER & SEALANT included
- Meets and/or exceeds all applicable OSHA & NFPA 33 regulations
- Easy to install, operate & maintain
- Optional: 1PH electrical & PSB-13DUCTKIT-8 KIT ASY
| Inside Dimensions | 10’L X 8’W X 8’H or 8’L X 10’W X 8’H |
| Outside Dimensions | 12′-6″L X 8’-4″W X 9’-4″H or 8’-4”L X 12’-6”W X 9’-4”H |
| Fan / Motor | (1ea) – 12″ Tube Axial Fan 1/2 HP-3PH-208-230/460VAC-60HZ Non-Spark, UL Listed, NEMA Rated |
| CFM | 1,429 @ .5 Static Pressure |
| Light Fixtures | (2ea) 48” 32W, T8 / 4 Bulb Light Fixtures
UL & ETL Listed Cls1, Div2 – Groups A, B, C & D |
| Lamps | (8ea) T8 Florescent, 32W, 5000K – 48”L |
| Options | Single Phase Electrical Configuration |
| 8′ Exhaust Duct Kit (13″ Diameter) |
