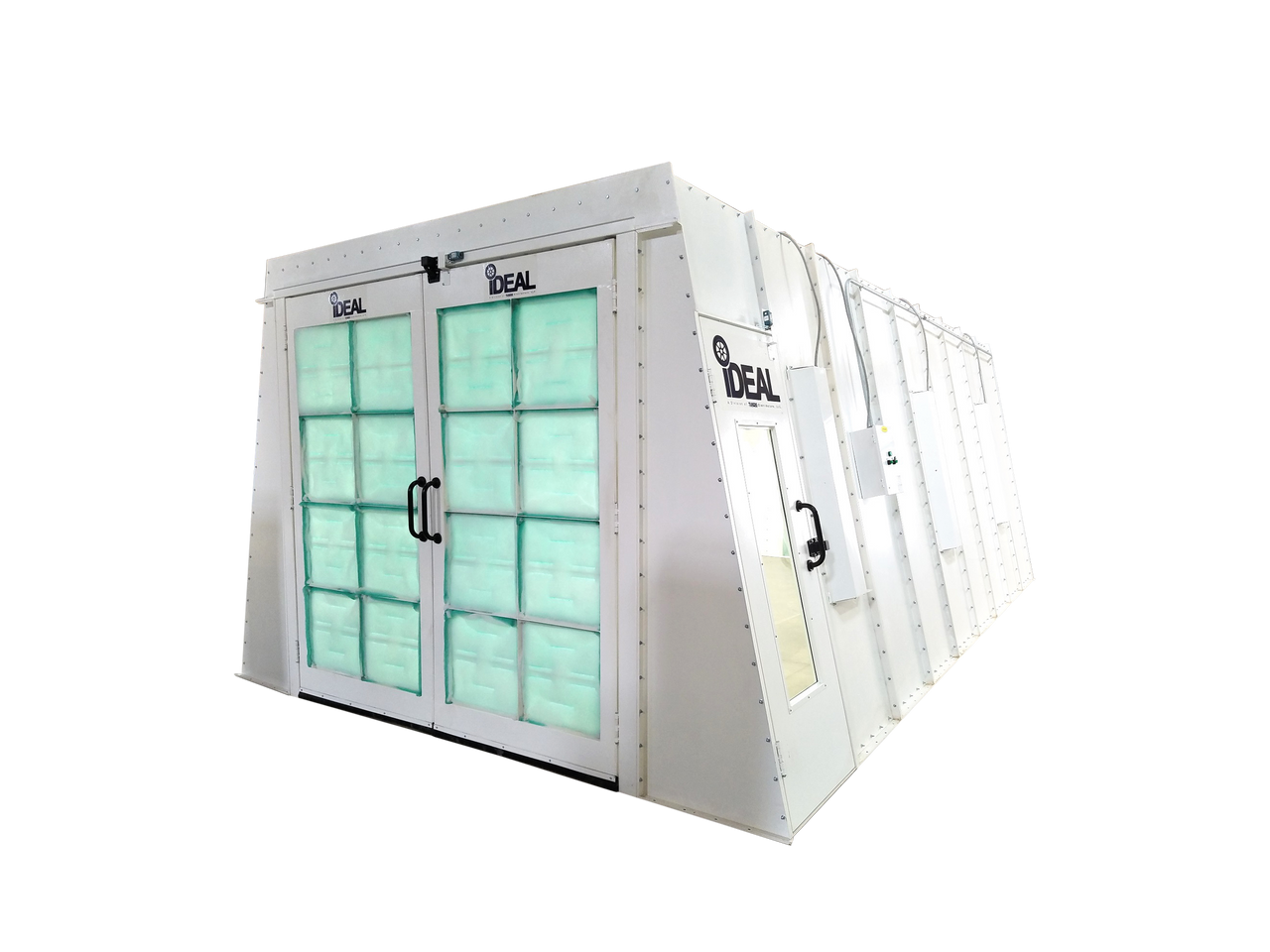

iDEAL - PSB-AFCF23B-AK CROSS FLOW DRAFT PAINT SPRAY BOOTH 3PH
iDEAL - PSB-AFCF23B-AK CROSS FLOW DRAFT PAINT SPRAY BOOTH 3PH
Regular price
$14,199.00 USD
Regular price
Sale price
$14,199.00 USD
Unit price
/
per
Couldn't load pickup availability
iDEAL - PSB-AFCF23B-AK CROSS FLOW DRAFT PAINT SPRAY BOOTH 3PH
FEATURES
- Typically ships within 48 hours!
- Heavy duty precision punched 18 Gauge panel construction
- Optimal ‘cross draft’ air flow w/ CFM 9,500 @ .5 static pressure

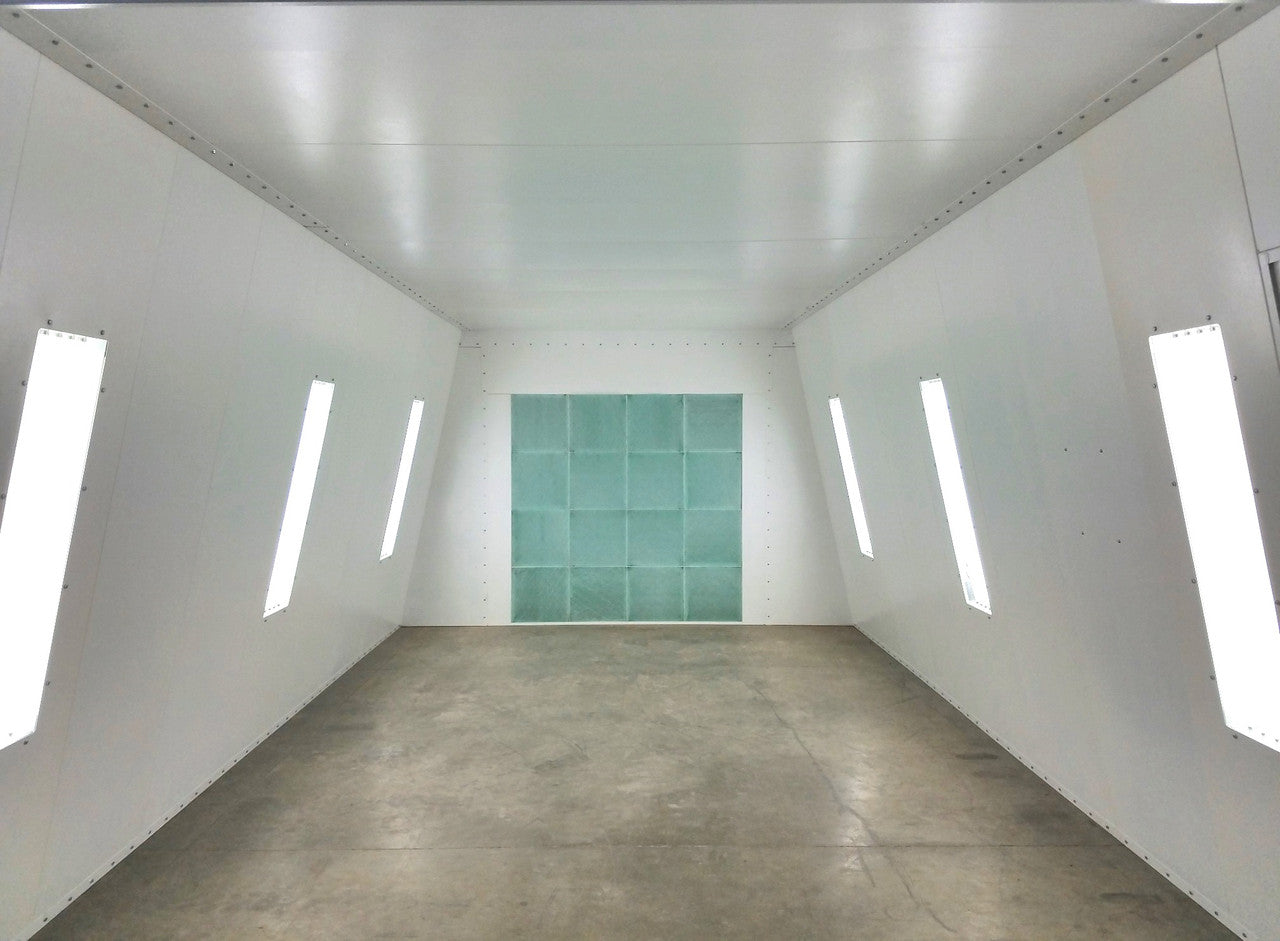

- Tilt panel design for optimal lighting coverage
- Inside Dimensions: 22′-6″ L X 13′ W X 8′-6″ H
- Convenient 5/16” bolt & nut assembly

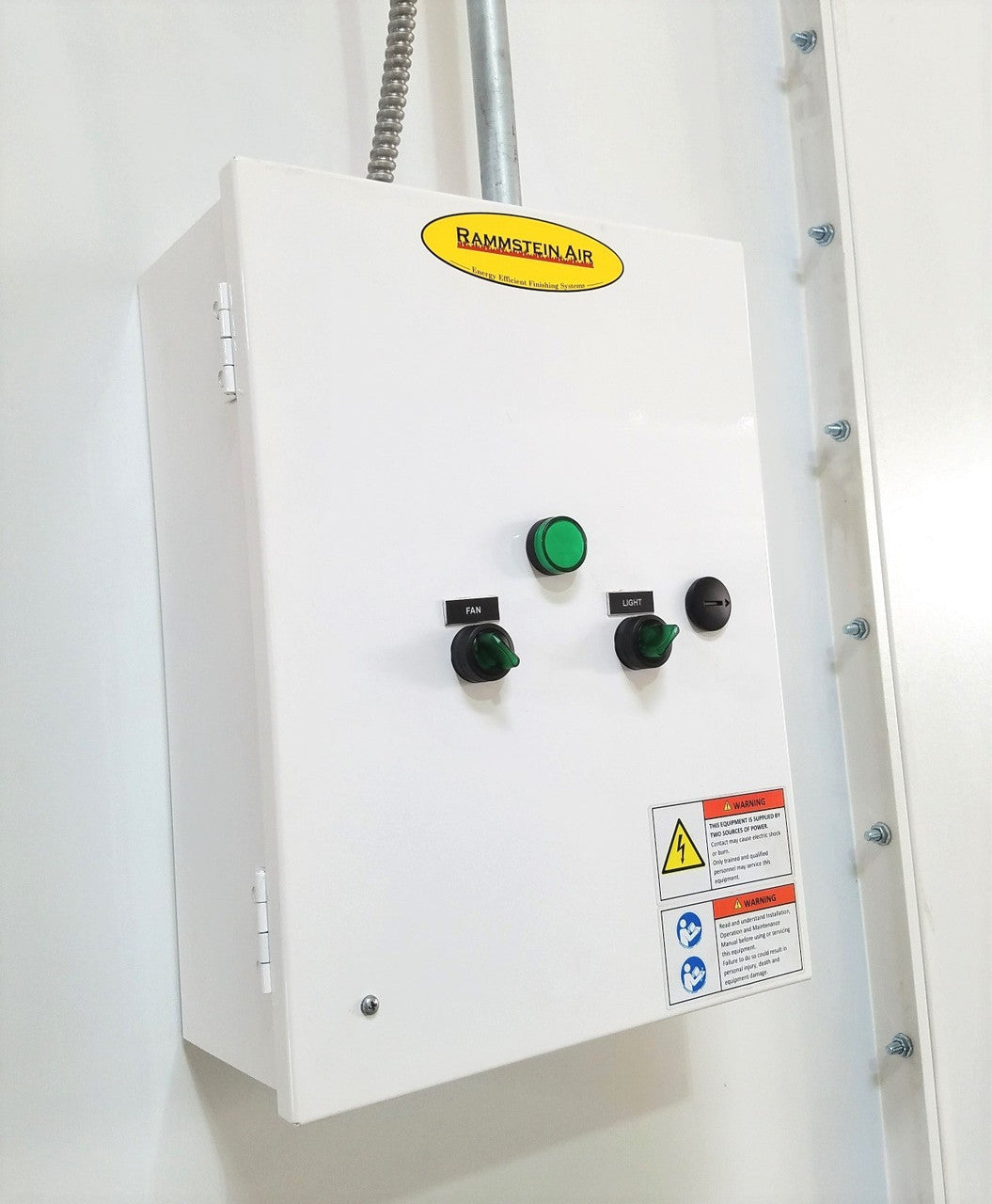

- Deluxe Control Panel included
- Bright White Powder Coat panel Finish – (inside & outside)
- Manometer, Solenoid Valve, Hardware & Sealant Included
- UL Listed Dayton 24” tube-axial exhaust fan w/ spark resistant fan blades
- NEMA rated 3HP-3 Phase – 230/460VAC-60Hz motors standard
- Premium AFC intake & exhaust filters
- (6ea) LDPI Industrial Lighting T-8 ‘vertical’ light fixtures, 4 lamp
- (24ea) GE T8 Florescent Lamps – 32W, 5000K 4′ length

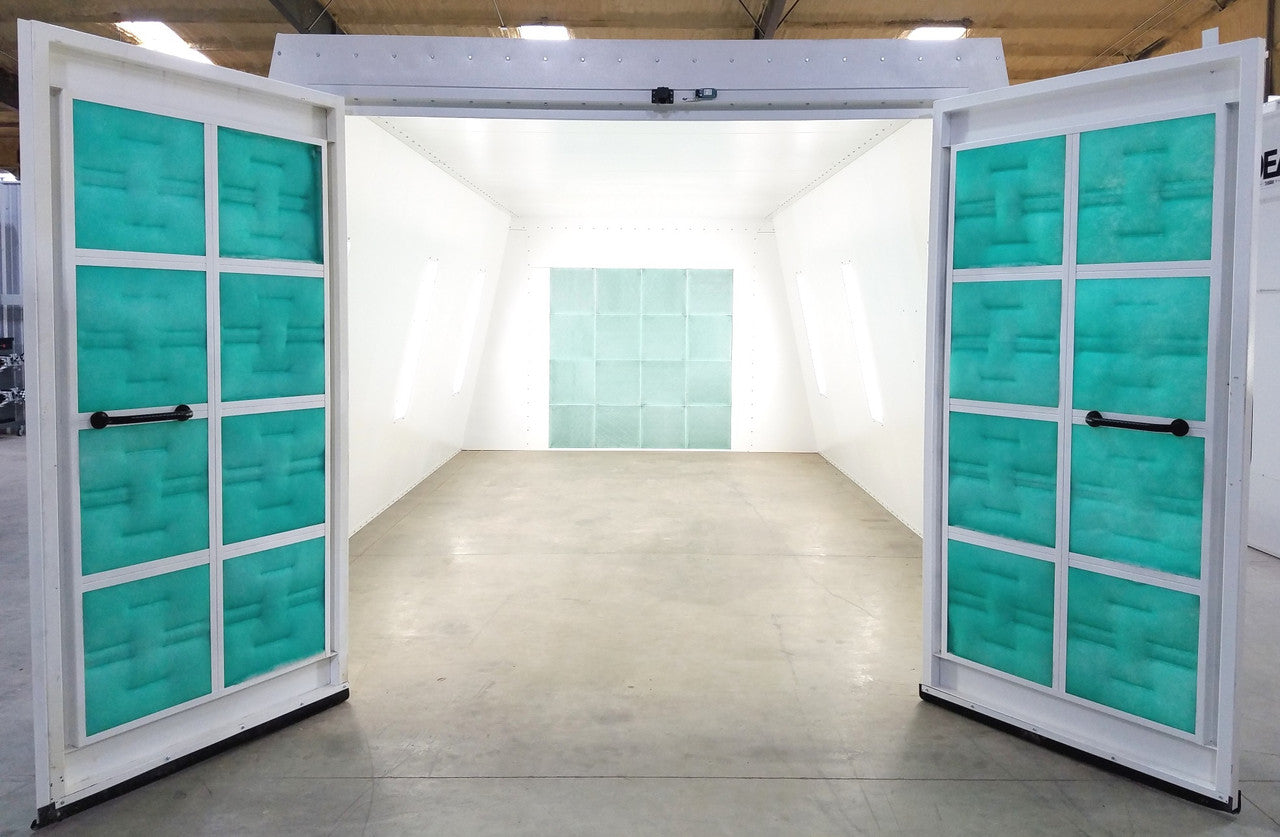

- Double Entry Doors w/ shutoff switches
- Personnel Door w/ viewing window & shutoff switch
- Meets NFPA 33 standards
- Optional: 1PH electrical, Personnel door kit & booth extension kits
| Paint Booth Model | PSB-AFCF23B-AK |
| Inside Dimensions | 22′-6″L X 13’W X 8′-6″H |
| Outside Dimensions | 25′-4″L X 13′-4″W X 8′-10″H |
| Fan / Motor | 24″ Tube Axial Fan 3HP-3PH-230/460VAC-60HZ Non-Spark, NEMA Rated |
| CFM | 9,500 @ .5 Static Pressure |
| Lighting | 6 Each T-8 / 4 Bulb Light Fixtures |
| Options | Single Phase Electrical Configuration |
| 8′ Exhaust Duct Kit (25″ Diameter) | |
| Side Personnel Door Kit | |
| 30″ Lighted Extension Panel Kit | |
| 30″ Solid Extension Panel Kit | |
| Electric Booth Heater 3 Phase | |
| Electric Booth Heater 1 Phase | |
| LED Lighting Upgrade Kit |
