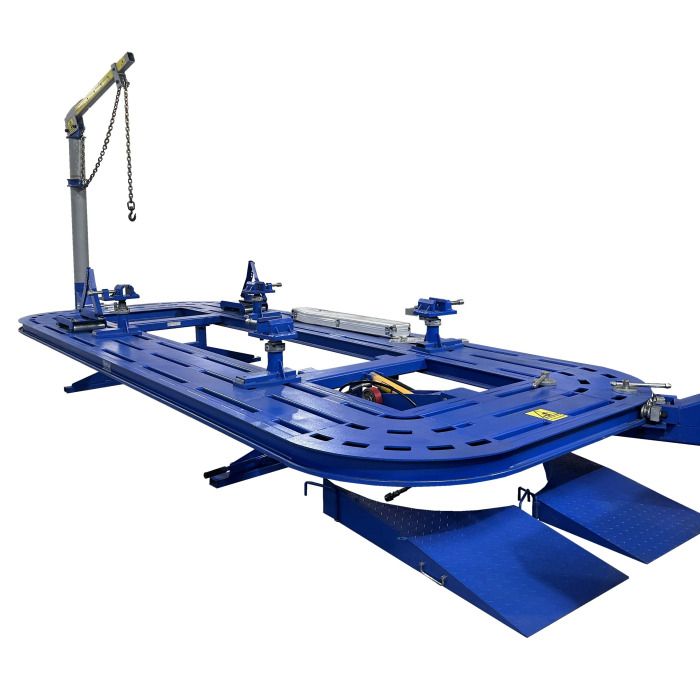

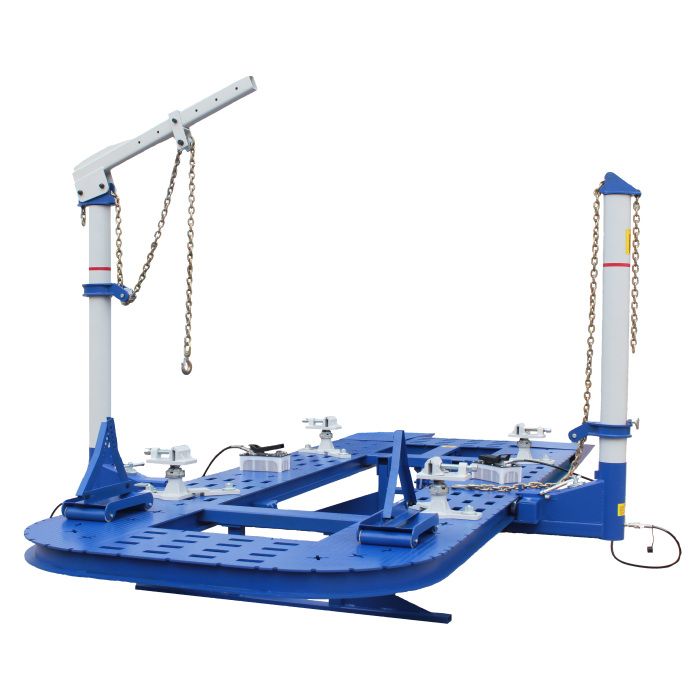

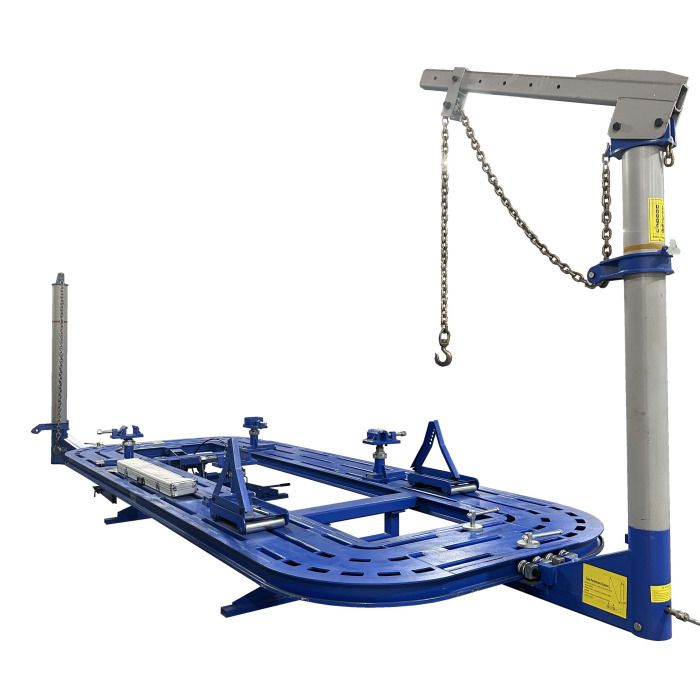

iDEAL FR-77-20 STEEL PLATE DECK FRAME RACK MACHINE

iDEAL FR-77-20 STEEL PLATE DECK FRAME RACK MACHINE

FEATURES

• Deck Design: Steel Plate
• Lifting Capacity: 7,700 lbs.
• Deck Length: 20' (6100 mm)
• Deck Width: 82.6" (2100 mm)
• Deck Height: 19.7" (500 mm)
• Pull Force Per Tower: 10-Ton (100KN)
• Hydraulic Pressure: 10,000 PSI (70 MPa)
• Post Working Range: 360°
• Required Air Pressure: 100 - 120 PSI (0.6 - 0.8 MPa)
• Shipping Weight: 5,953 lbs.
• Durable, Heavy Duty Plate Steel Deck Construction
• Designed to Service Full-Frame or Uni-Body Type Vehicles
• Hydraulic Tilt Deck Operation with 7,700 lbs. Capacity
• Clear Floor, 360 Degree Pulling Capability
• Universal Anchoring System with Adjustable Height Pinch Weld Assemblies
• Multiple Tie-Down 'Precision Cut' Hole Locations
• (2) 10 Ton Pulling Towers with Telescoping Tower Heads
• Adjustable Tower Collars
• Overhead Boom Pull Tower Extension
• Quick Disconnect Hydraulic Fittings and Hose Connection
• (2) 10′ Pulling Chains with Hooks
• (2) High Quality Air/Hydraulic Pumps with Pressure Gauges
• Durable, Heavy-Duty Construction with Powder Coat Finish
• Universal Wheel Stand And Dead Vehicle Dolly Included
• Drive-On Ramps Included
