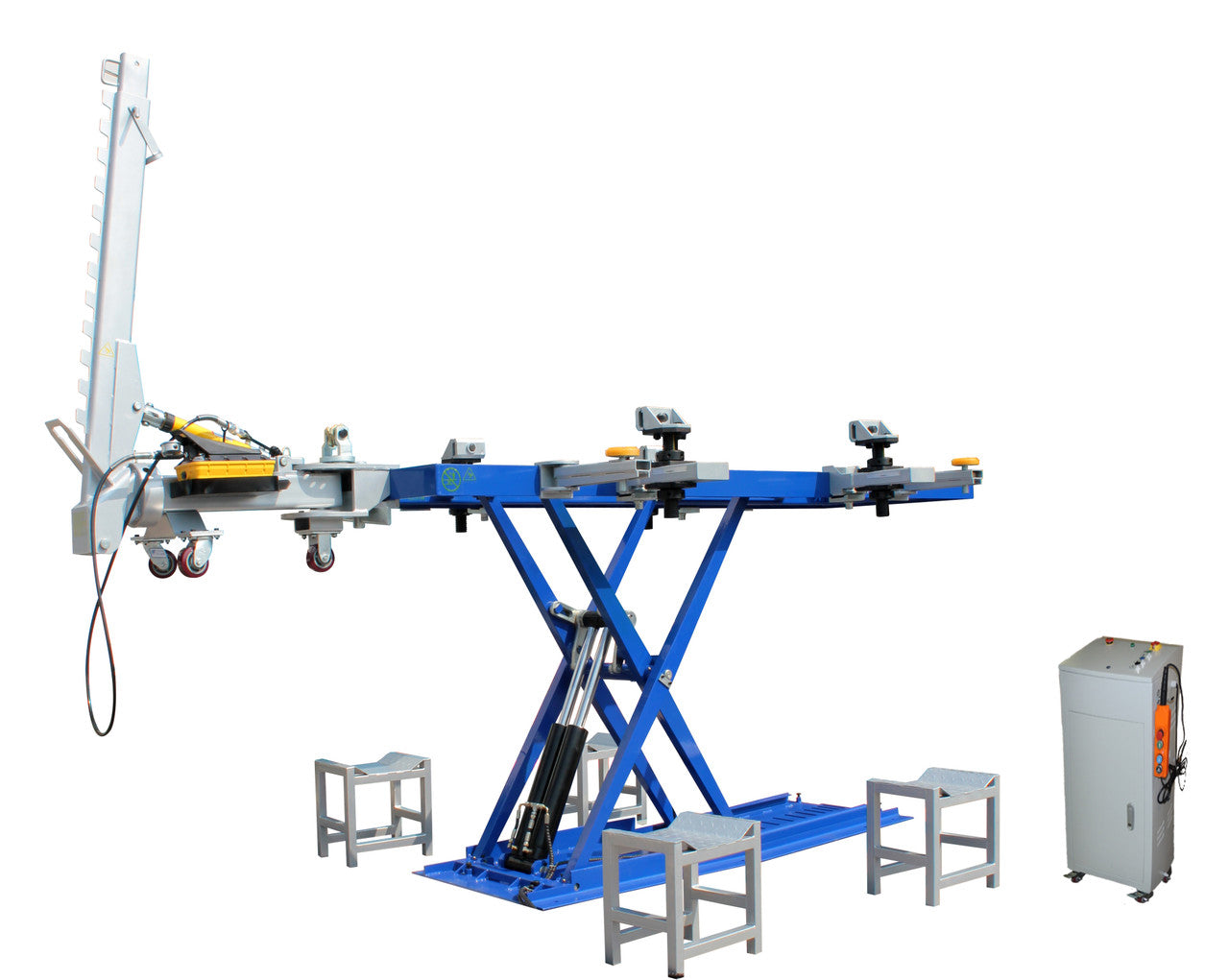

iDEAL FR-55 SCISSOR FRAME RACK MACHINE

iDEAL FR-55 SCISSOR FRAME RACK MACHINE

FEATURES

• Scissor Style Operation with 5,500lbs. Capacity

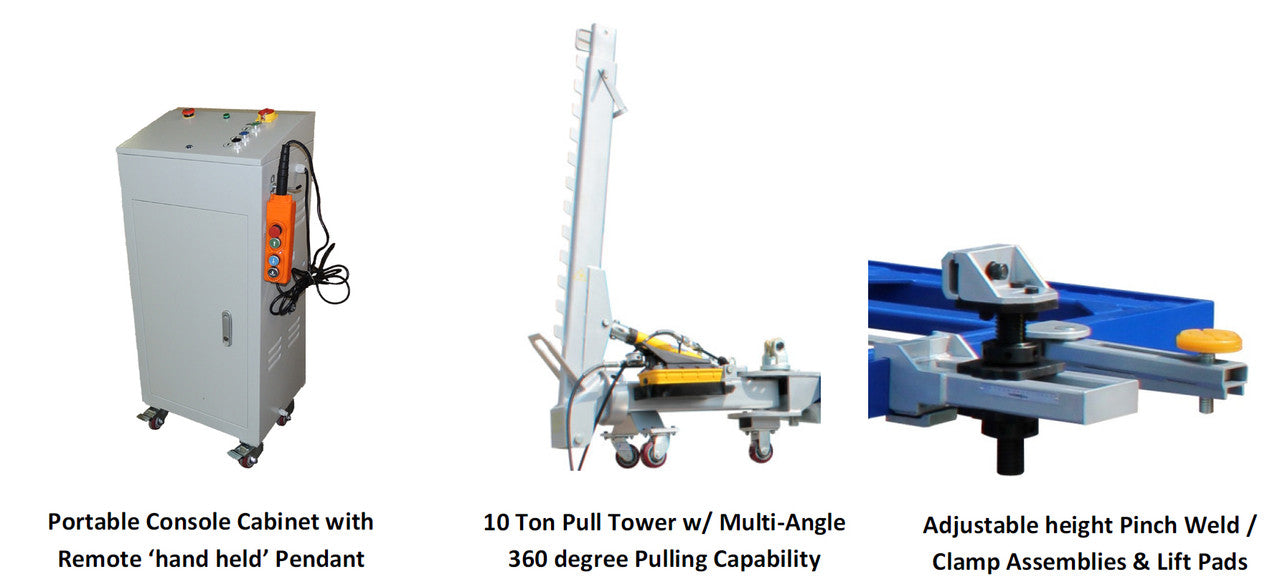

• Simple Console Operation for Raising and Lowering
• Universal Anchoring System with Adjustable Height Pinch Weld Assemblies
• 10 Ton Pulling Tower with Down Pull Roller
• Quick Disconnect Hydraulic Fittings
• 10′ Pulling Chain with Hook
• High Quality Air/Hydraulic Pump with Pressure Gauge
• Universal Wheel Stands
• Powder Coat Finish
• Deck Design: Scissor Lift
• Deck Length: 173.25"
• Deck Width: 37"
• Deck Height: 4.75" – 63"
• Pull Force Per Tower: 10 Ton
• Hydraulic Pressure: 10,000 PSI
• Required Air Pressure: 100 – 120 PSI
• Lifting Capacity: 5,500 lbs
• Power: 220VAC – 20 AMP, 1PH
• Ship Weight: 3,105 lbs
