FOUR POST CABLE LIFT

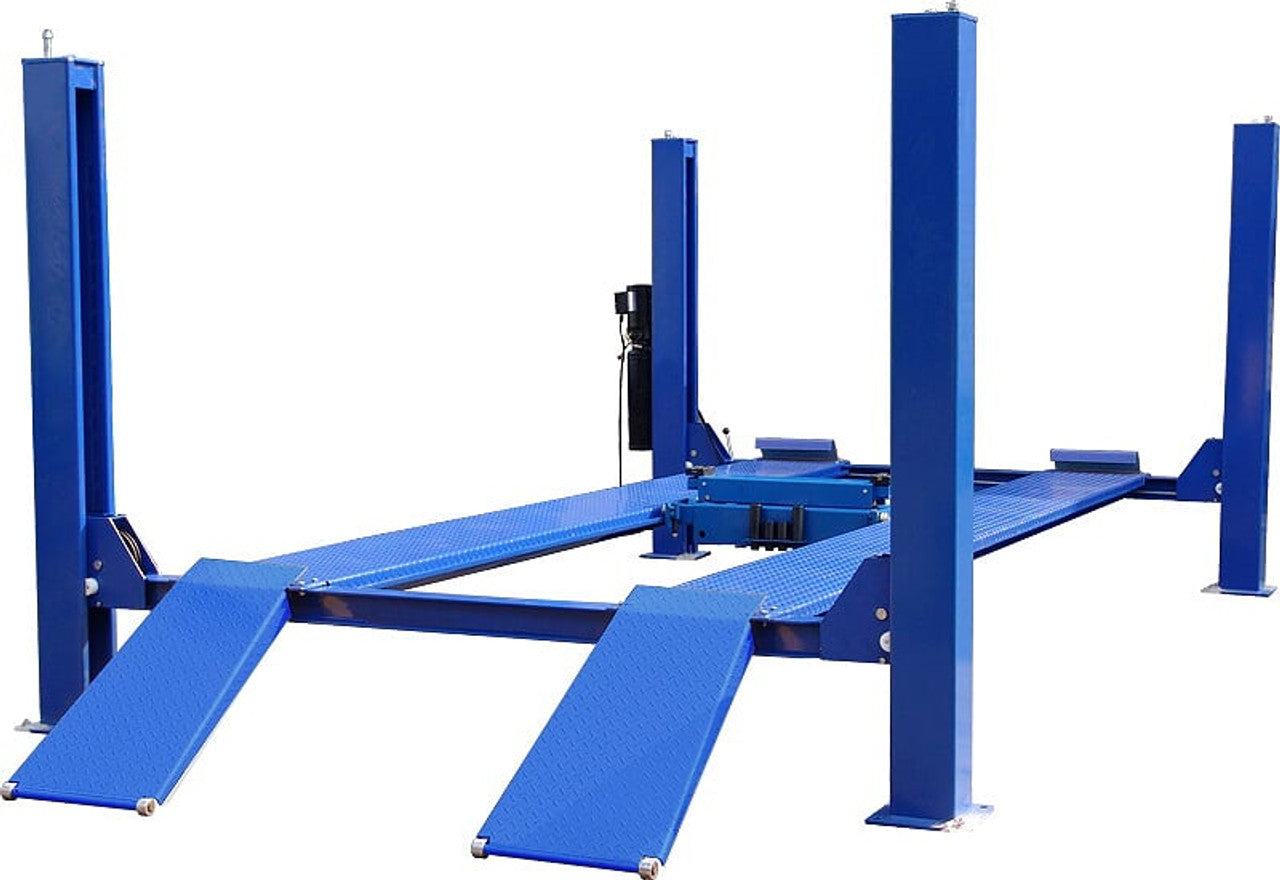

TUX FP12K-K 12,000 LB. Four Post Cable Lift

FEATURES

• 12,000 lb. lifting capacity
• Cable driven
• 21” runways
• Powder coated paint finish
• Non-skid diamond plate runways
• Lifting capacity 12,000 lbs.
• Total width (to outside base plates) 123”
• Width between posts 105”
• Width between tracks 36 1⁄2”
• Ramp length 36”
• Track length (without ramp) 191”
• Track outside width 78”
• Track width 21”
• Base plate dimensions 11” x 11”
• Overall length (to outside base plates) 196”
• Lifting height to top of track 67 1⁄2”
• Maximum clearance under track 63 1⁄4”
• Overall height 89”
• Length between posts 177”
