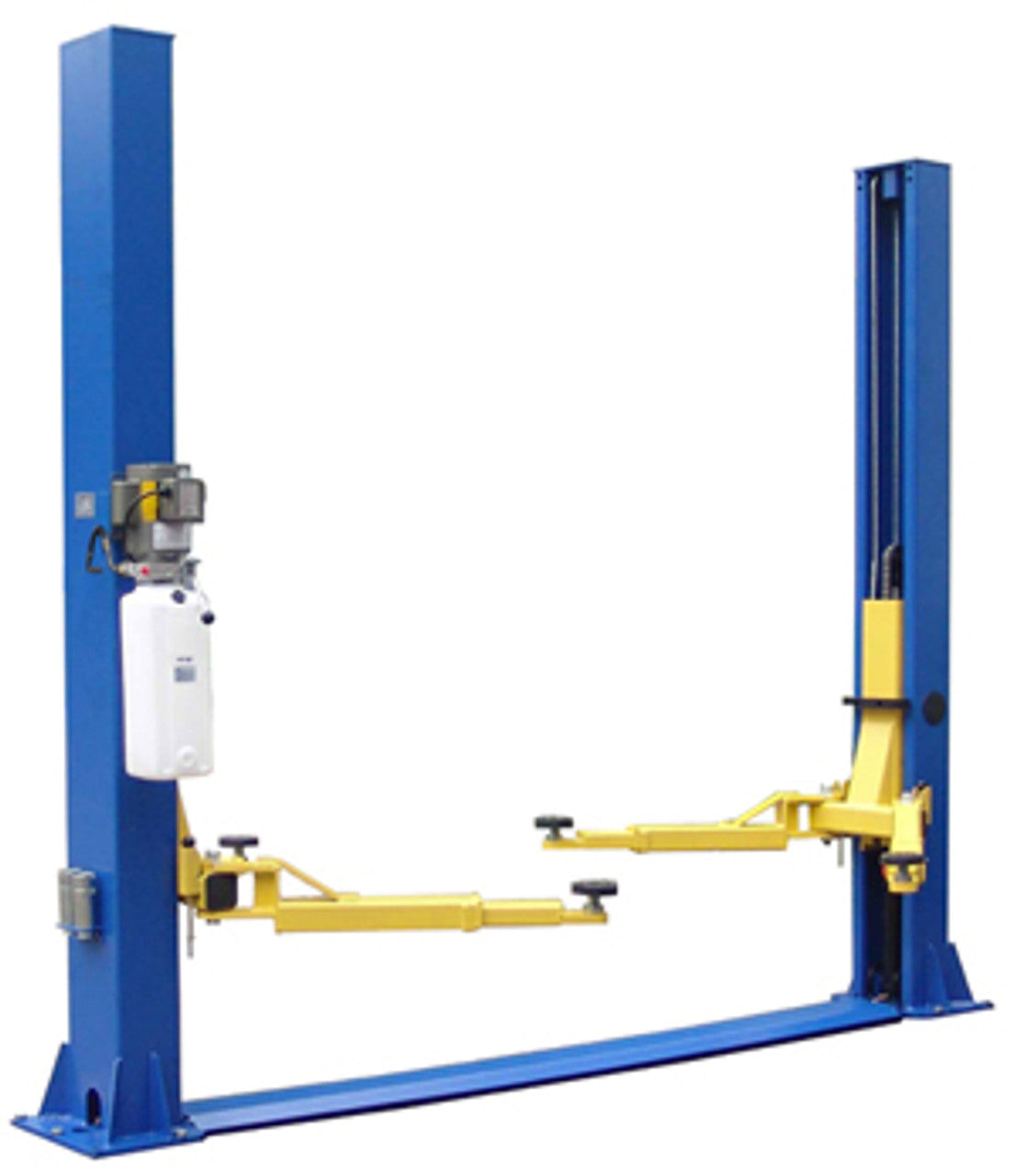

FLOOR-PLATE TWO POST CAR LIFT

The 9K-ACX & 9K-SCX are clear floor & 9K-FX floor plate

FEATURES

• Capacity 9,000 lbs
• Overall height 111.9"
• Width Overall w/ Power unit 134.6"
• Max Lift Height 72"
• Width Between Columns 110.4"
• Min Pad Height 4"
• Drive thru Clearance 101"
• Lifting Speed 50 sec
• Asymmetic/ Symmetric (Symmetric)
• Clear Floor/Floor Plate (Floor Plate)
• Front Arm Reach-min/max 31"-45"
• Rear Arm Reach-min/max 31"-45"
• Max Load per Arm 2,250 lbs
• Cable Diameter 3/8"
• Column Size 7.25"x 10.87"
• Column Steel thickness 5mm
• Carriage Steel thickness 6mm
• Power 220V-20 AMP-1 PH
• Ship Weight 1,265 lbs.
