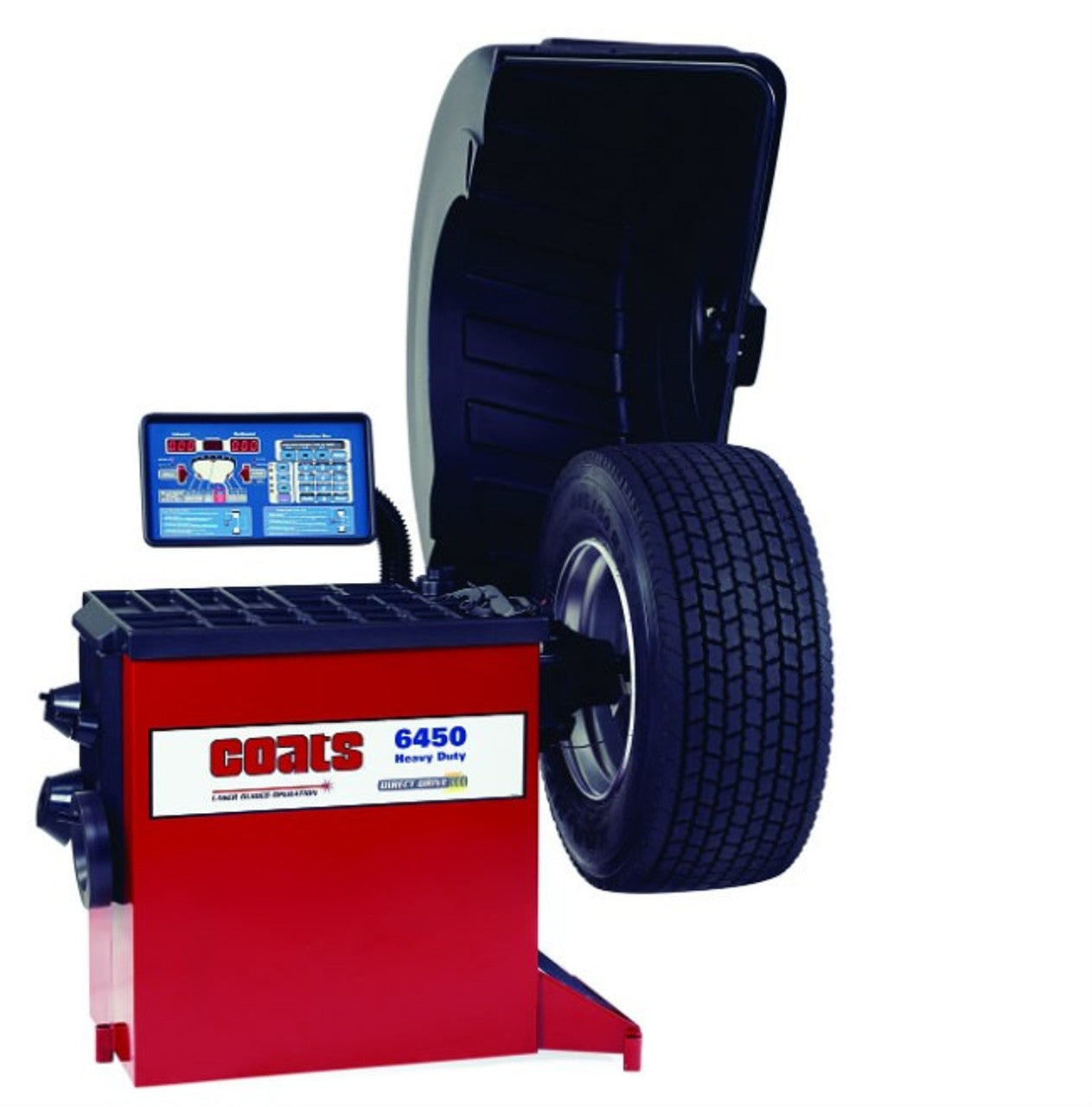

COATS 6450-3D HEAVY-DUTY TRUCK WHEEL BALANCER

COATS 6450-3D Heavy-Duty Truck Wheel Balancer

FEATURES

• Auto Data Entry for all three parameters with one touch - just drop the hood and go
• Auto indexing automatically moves the wheel to the required weight positions
• Stop and Lock feature locks the spindle firmly in place for easier, more accurate weight placement
• Powerful 1.5 hp direct drive motor shaves 20 seconds off a typical 22.5" spin
• DCS ensures the 6450 is the most accurate heavy duty balancer in car/light truck mode on the market, like two balancers in one
• 2 parameter auto data entry system for clip weight and 3 parameter for Tape-A-Weight®
• 500 lb. Met Lab / UL approved with 52" wheel capacity
• Designed for front line, high-volume balancing
• Easy-to-read LED readouts
• 2” (51mm) heavy duty arbor on Coats proven direct drive motor
• Laser-guided direct Tape-A-Weight placement
• Weight 1100.00 lbs
• Type of Balancer Heavy Truck
• Drive System Direct
• Self Calibrating YES
• On Screen Cal. Directions YES
• Automatic Data Entry 3Parameter
• Stop on Top- Stop & Lock
• Auto Indexing (second weight position) YES
• Operator A+B YES
• Match Mount YES
• Motor Size 1.4hp direct
• Cycle Time-R11 22.5 (200lb) 18sec.
• Cones -2 Auto, 2 lt truck
• Ounce Gram Selectable YES
• Adapter Storage Side Pegs
• Direct Weight placement YES
• Monitor/ Display LED w/ text instruction box
• Printer NO
• On Board Inflation station NO
• Econo Balance NO
• Balancing Modes 11
• Max Tire Diameter-52" (1320mm)
• Max Rim Width-20" (510mm)
• Max Weight Capacity 500 lbs (227kg)
• Shaft Diameter 51mm
• Resolution Displayed .01 oz (.03cl)
• Accuracy .01 oz (+/- .05) [.03cl (+/- .14)
• Power Requirements 220v/1ph or 3ph 60hz
• Chassis Footprint 72" w x 62"d
