ROLLING BRIDGE JACK

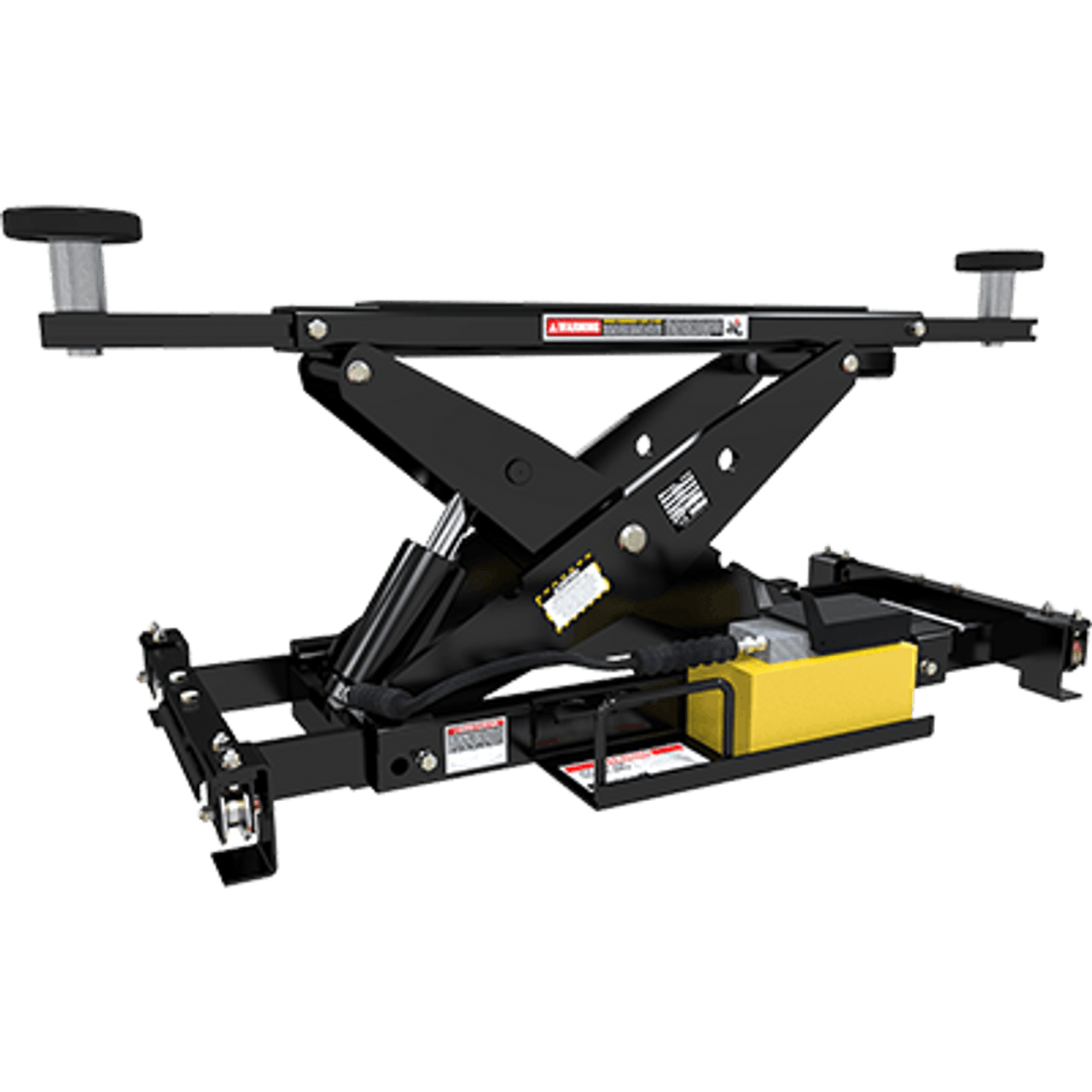

BENDPAK Rolling Bridge Jack

FEATURES

• 6,000-lb. lifting capacity
• Rubber lifting pads
• High-pressure hydraulic power unit
• Optional air-line kit
• Stackable adapters
• Lifting Capacity 6,000 lbs. (2,721 kg)
• Suitable Lift Model(s) XR-12000 Series
• Pad Only: 1.25" (32 mm)
• Pad + 2.75" Adapter: 4" (102 mm)
• Pad + 5.5" Adapter: 6.75" (171 mm)
• Pad Only: 12" (305 mm)
• Pad + 2.75" Adapter: 14.75" (375 mm)
• Pad + 5.5" Adapter: 17.5" (445 mm)
• Support Base Width: 36.25" (921 mm) - 47.25" (1,200 mm)
• Max. Arm Reach: 56" (1,422 mm)
• Min. Arm Reach: 42" (1,067 mm)
• Time to Full Rise: 55 seconds
• Pump: Air/Hydraulic
• Air Pressure: 125 PSI (10-25 CFM)
• Max. Operating Hydraulic Pressure: 3,370 PSI
• Power Requirement: None
• Shipping Weight: 426 lbs. (193 kg)
• Shipping Dimensions: 41.25" x 25" x 15" (1,048 mm x 635 mm x 381 mm
