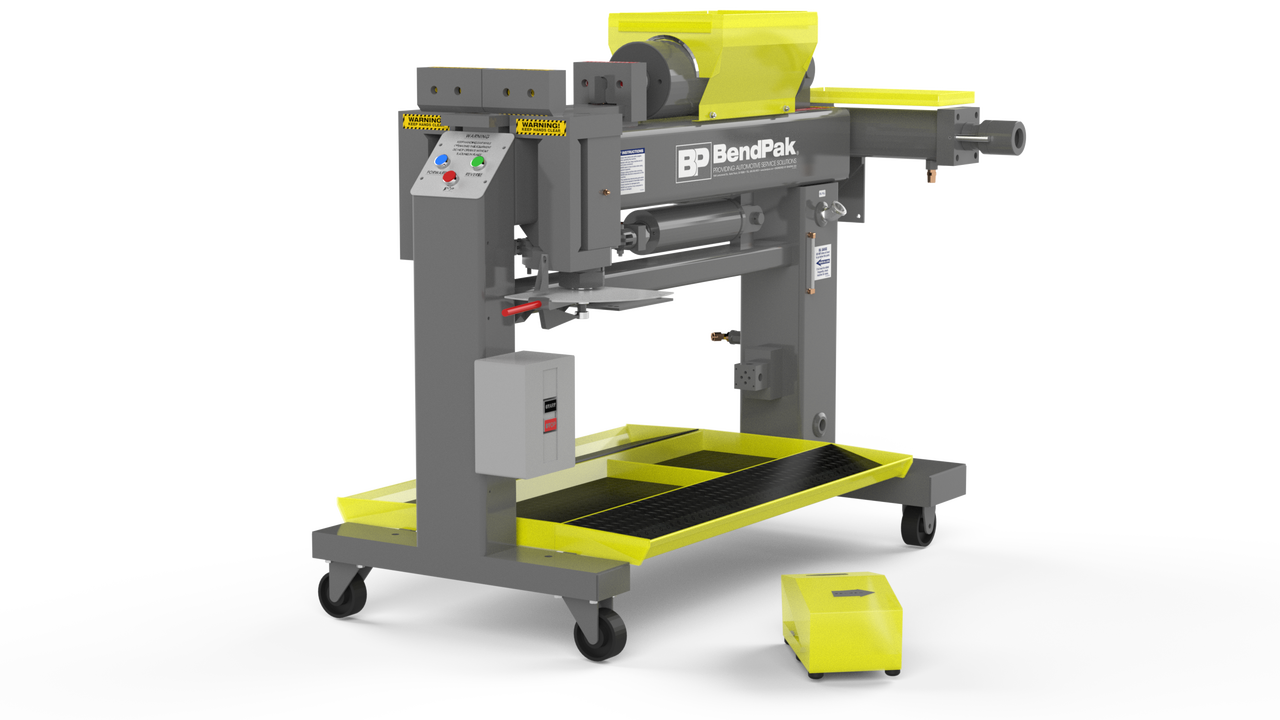

BENDPAK BB-2 BLUE-BULLET BENDER

BENDPAK BB-2 Blue-Bullet Bender with BB-2 Die Package

FEATURES

• 2 separate end-finishing units at rear for all necessary flaring and expanding
• Knee control and depth-of-bend degree plate for manual bending operations
• BB-2 Tooling Package included
• Comes complete with quick release bending and finishing dies
• Includes high-speed clamp less swager and internal expander
• Easy-to-use drop-in collar makes swaging operations quick and efficient
• Twist-lock tooling
• Integrated power-relief control valve
• Pass-through cylinder stem passes completely through the primary frame
• Rigid 6" x 6" x 3/8" welded-steel tube frame
• Commercial-grade hydraulic cylinders
• All cylinders feature chrome-molly shafts, conforming to ANSI 92.2 standards
• Quick-release bending dies for reduced set-up times
• Bending heads precision grounded to within .002"
• Enclosed controls keep your bending area clutter-free
• 2-1/2" oversized barrel shafts for maximum dependability and minimum maintenance
• Standard grease fittings allow for simple lubrication
• NEMA rated on / off switch box incorporates overload relays that automatically disrupt power supply should an unforeseen over-current situation occur
• Pressure gauges let you know exactly what the system pressures are at all times
• Industrial grade casters help you easily move the bender around your shop
• Adjustable pressure valve located right up front
• One piece barrel ensures that the bending gates stay perfectly aligned with the ram
• Heat-treated tooling for greater service life
• Convenient tool trays keep your tooling organized
• Strong, 5 Hp Baldor energy efficient motor delivers maximum performance
• Direct-drive, high-speed, 4 gpm pump
• Single enclosed bottom cylinder applies pressure evenly to the back gates and, because it is hidden, does not interfere with the tubing
• Large capacity fluid reservoir keeps the hydraulic oil running cooler and prevents contamination
• Canister oil filter in the hydraulic system keeps the oil nice and clean
• Oil sight-gauges allow you to visually inspect oil levels
• Over-sized 1/2" high-pressure hose provides better speed and cooling
• Open-sided swager box allows for easier access and reduces the chance of "crashing" tools and damaging the cylinder
• 180° bending die available

• Bending controls: manual / knee lever
• Expander controls: manual / knee lever
• Frame style: 1302 / double-ended expander
• Maximum bending radius: 5" / 127 mm
• Minimum bending radius: 3-1/3" / 89 mm
• Maximum tube capacity: 3" / 76 mm / .095 wall
• Standard die pack (BB-2): 1-1/2", 1-3/4", 1-7/8", 2", 2-1/4", 2-1/2"
• Top cylinder working force: 60,000 lbs. / 27,216 kg
• Hydraulic filter: canister
• Dimensions: 42" x 62" x 31" / 1,067 mm x 1,575 mm x 787 mm
• Standard motor: 5 Hp / 208 - 230 VAC / 60 Hz / 1 pH
• Shipping weight: 1,264 lbs. / 573 kg
• Shipping dimensions: 48" x 70" x 30" / 1,219 mm x 1,778 mm x 762 mm
