BENDPAK AIR COMPRESSOR (80-GALLON VERTICAL TANK)

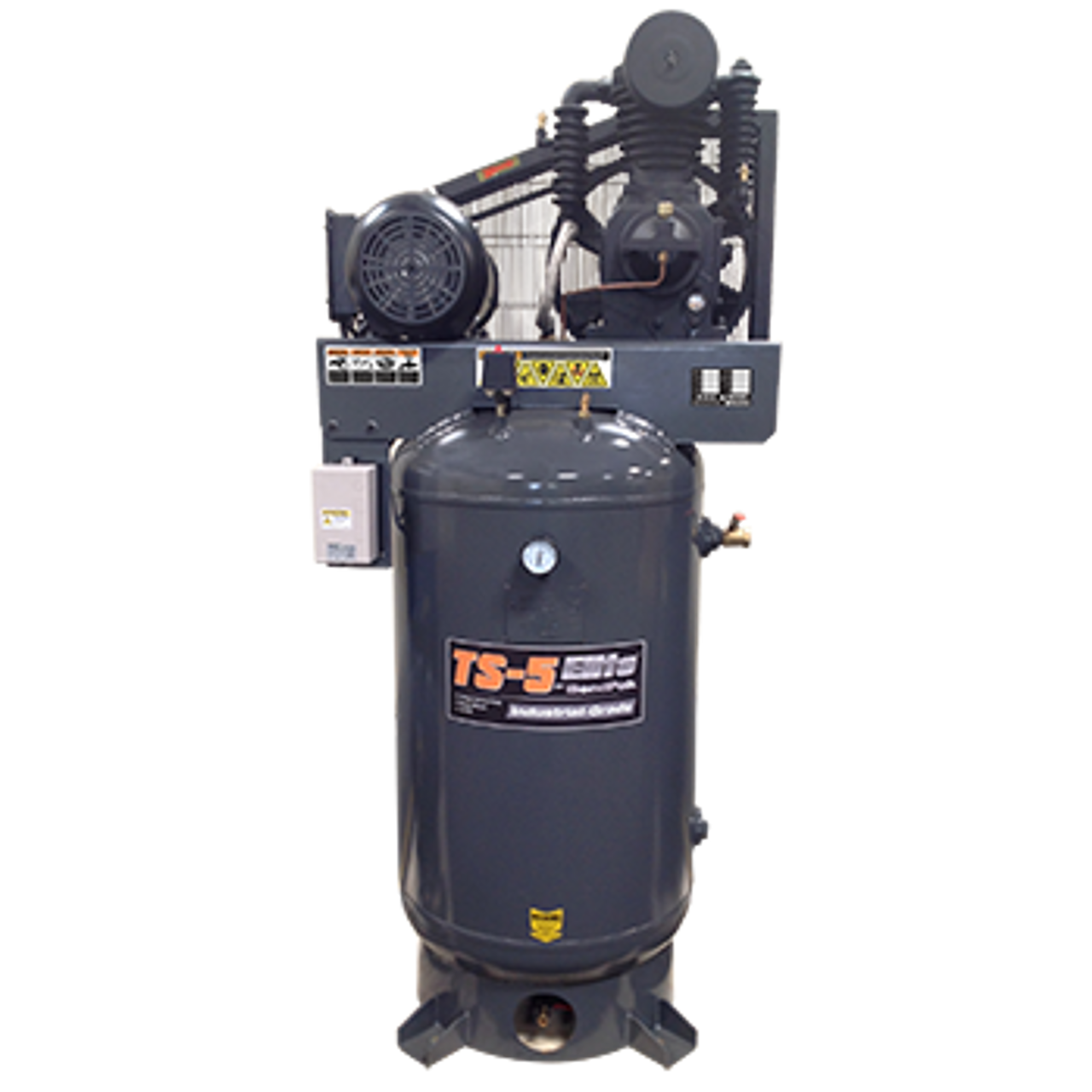

BENDPAK TS-580V-601 Elite™ Air Compressor, 5 HP, 80‐Gallon Vertical Tank

FEATURES

• 5 HP energy‐efficient motor
• Pressure switch controlled ensures efficient operation at all times with no wasted energy
• Cast‐iron pump and heads are more stable under heavy workloads and do not warp from heat like aluminum cylinders with a pressed‐in sleeves do
• Cast‐iron Elite pump features simple splash lubrication for total reliability and a finned cylinder configuration that provides 360° cooling
• Dual drive belts require less belt tension resulting in less load on pump bearings, longer belt life and low vibration
• Fully‐enclosed belt guard
• ASME rated tank
• Large surface area and cooling fins on cylinders and forced‐air aftercooler provides efficient heat dissipation for lower operating temperatures and dryer air. Compressor runs cooler, oil life is extended and maintenance is reduced
• Precision honed cylinders increase efficiency and oil control
• Oversized ductile iron crankshaft provides extra strength and longer wear
• Tapered roller main bearings provide full contact and support of the crankshaft and needle‐type piston pin bearings properly distribute bearing loads
• Precision balanced flywheel has forced‐air fan blades for optimum compressor cooling and life
• Magnetic starter provides thermal overload protection and minimizes start loads providing long life and trouble‐free operation
• ASME rated safety valve protects the compressor from overpressure and safeguards the operator
• Balanced flywheel and counterbalanced crankshaft provides vibration‐free operation
• Readily accessible disc‐valves do not require disassembly of compressor piping for easy accessibility and reduced maintenance cost and downtime
• Corrosion resistant tubing for coolers, separators and valves for longer life and reduced maintenance
• High‐density, die‐cast aluminum alloy rods minimize reciprocating weight
• Rugged cast iron oil reservoir has convenient sight gauge glass, large oil drain and convenient fill cap
• Automatic pressure switch provides auto start and stop
• Integrated pressure unloader valves are built into the intake valve assembly on the compressor head reducing internal pump heat from initial start‐up compression
• Pressure gauge with service valve
• Oversize replaceable air filter
• Tank: 80 gallons / 300 L / Vertical Tank
• Voltage: 208 - 230 V
• Horsepower: 5 Hp
• Phase: 1 Ph
• Hertz: 60 Hz
• Running Load Amps (SFA) 26-23.8A
• Peak Start-up Amps 54-48A
• Recommended Breaker 30A
• Noise level: 75 dB
• Pump Style: 2-Stage/2-Piston/Vertical
• Pump RPM: 625 rpm
• Motor RPM: 1740rpm
• Lubrication: splash / oil
• Cubic feet per minute @ 90 psi: 17.9 CFM
• Cubic feet per minute @ max psi: 17.2 CFM
• Max psi: 175 psi
• Shipping weight: 619 lbs. / 281 kg
• Shipping dimensions: 39" x 26" x 79" / 991 mm x 660 mm x 2006 mm
