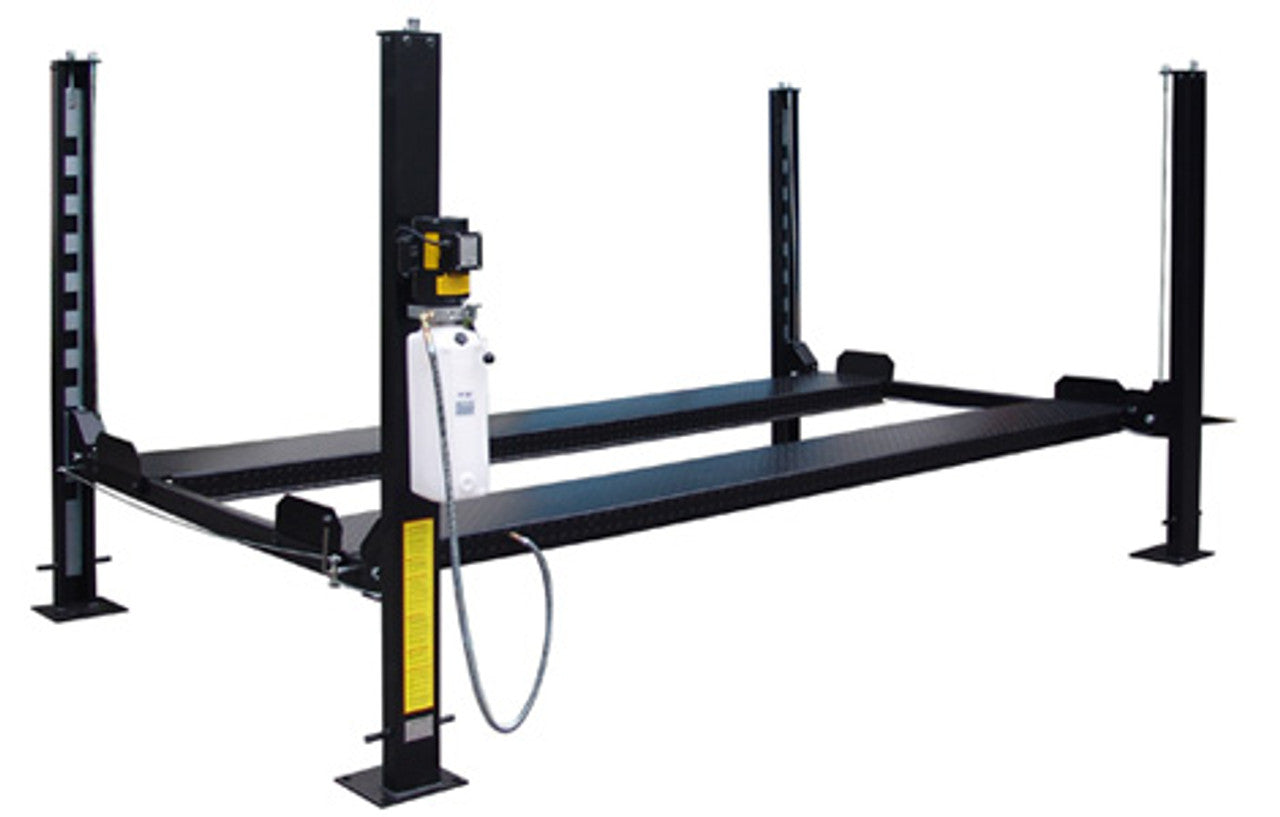

4 POST PARKING LIFT

CAR LIFT CL-4-8KB Basic Storage Lift 8K lb 4 Post Parking Lift

FEATURES

• 8,000 lb lifting capacity
• Carriages completely enclosed for safety
• Internal lock ladder safety system with "auto engage" locking bar in the event of cable failure
• Extra large slider blocks for added stability
• 10 lock positions
• Aircraft quality cables rated at 14,500 lbs
• 18" wide runways formed with one-piece 3/16" non-skid diamond plate
• Easy operation: Lock release handle located near power unit
• Large 3" diameter cylinder
• Capacity 8,000 lbs
• Lifting Height 74.8"
• Overall length w/ ramp 207.3"
• Overall Length w/No Ramp 175.5"
• Overall Width 103.5"
• Runaway Tread Width 18.7"
• Runaway Length 165.5"
• Runaway Height 4.3"
• Column Height 86"
• Clearance between Columns 94.4"
• Clearance between Runaways 37.2"
• outside Runway to outside Runway 74.8"
• Clearance under Runways 70"
• Drive Thru Width 80"
• Locking Positions 10
• Base Plate size 10"x 12
• Power 110V-20amp/ 1PH
• Ship Weight 1,695 lbs.
